Extra-large embroidery area: 14 x 9.5” (360 x 240mm)
889 built-in embroidery designs, including 101 Disney favourites
26 embroidery fonts (24 alphabets and 2 Cyrillic)
Monogram alphabet patterns, including a candle wicking design
760 built-in decorative and utility sewing stitches incl 16 buttonholes
11.25” (285mm) workspace to sew and quilt
Up to 1,050 spm embroidery speed
10.1” High resolution LCD touchscreen
Wireless capability to work with Brother apps, Artspira, My Design Snap, My Stitch Monitor and PE-Design 11
Stitch to Block function – change size of embroidery whilst keeping stitch density
LED pointer embroidery foot and laser sewing guide
Matrix setting – automatically place repeated designs for the perfect layout
Enhanced font editing functions
Advanced colour shuffling – save up to nine of your favourite palettes
Easy-access needle plate and newly designed multi-tool
Automatic electronic needle threader
Auto jump stitch trimmer
USB port – making it easy to import designs
Built-in movie tutorials and MP4 upload function

Zigzag foot “J” (on machine)
N+ Advanced monogramming foot “N+”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”

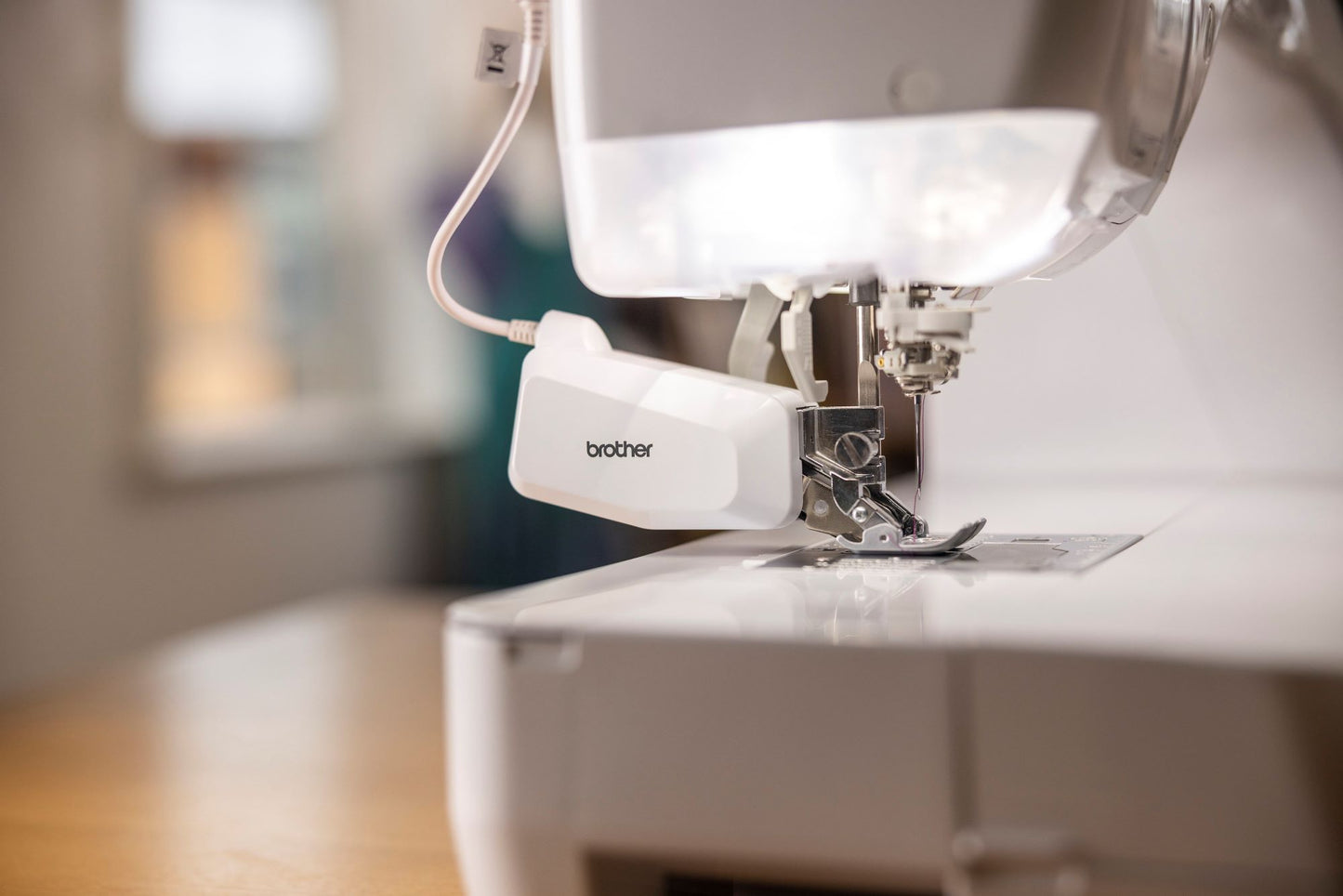

Compact dual feed foot
Regular dual feed foot (on compact dual feed foot)
Straight stitch foot
Free motion open toe quilting foot “O”
Embroidery foot “W+” with LED pointer
1/4" Piecing foot with guide
Adapter
Screw (small)
Needle set
- 75/11 2 needles
- 90/14 2 needles
- 90/14 2 needles: ballpoint needle (gold colored)
Twin needle
- 2/11 needle
Ballpoint needle set
- 75/11 2 needles: ballpoint needle for embroidery
Bobbin × 10 (one bobbin is in machine)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Multi-purpose screwdriver
Spool cap (small)
Spool cap (medium) × 2 (one spool cap is on machine)
Spool cap (large)
Thread spool insert (mini king thread spool)
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Touch pen (stylus)
Knee lifter
Foot controller
Standard bobbin case (green marking on the screw) (on machine)
Alternate bobbin case (no color on the screw)
Straight stitch needle plate
Cord guide bobbin cover
Bobbin cover (with mark) (on straight stitch needle plate)
Bobbin cover (on machine)
Embroidery frame with decal set
- 36 cm (H) × 24 cm (W) approx. 14 inches (H) × 9 1/2 inches (W))
Embroidery frame with decal set
- 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W))
Embroidery positioning sticker sheets × 4
Lens calibration sheet
Embroidery bobbin thread (#60, white)
Stabiliser material
Grid sheet set
Chalk pencil
Accessory bag
Embroidery couching foot “Y”
Yarn guide for embroidery couching
Yarn threader
Vertical spool pin
Operation manual
Embroidery Design Guide

Brother 5 year Warranty *Commercial use only 1 year warranty

Machine Dimension (mm) 662x321x348
Weight (kg) 17

Workspace
11.25” (285mm) long arm to the right of the needle and 5” (127mm) height from sewing bed to top of machine arm.

Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings, including off.

Needle threader
Easy to use, automatic needle threading system.

Bobbin winder
Independent bobbin winder system with adjustable winding speed.

Wireless
Wireless LAN capability for exchange of embroidery data with PE-Design 11, mobile apps and updates.

Thread tension
Automatic thread tension.

Thread cutter
Trims upper and lower threads automatically.

Presser foot
Automatic presser foot lift and extra high lift.

Thread sensors
Gives you a warning when your upper and lower threads are running low.

Teaching movies
Wide selection of built-in tutorial videos and MP4 playability.

Start/stop button
Ergonomic large start/stop button.

Environment
Save energy with the Eco and Deep Sleep modes.

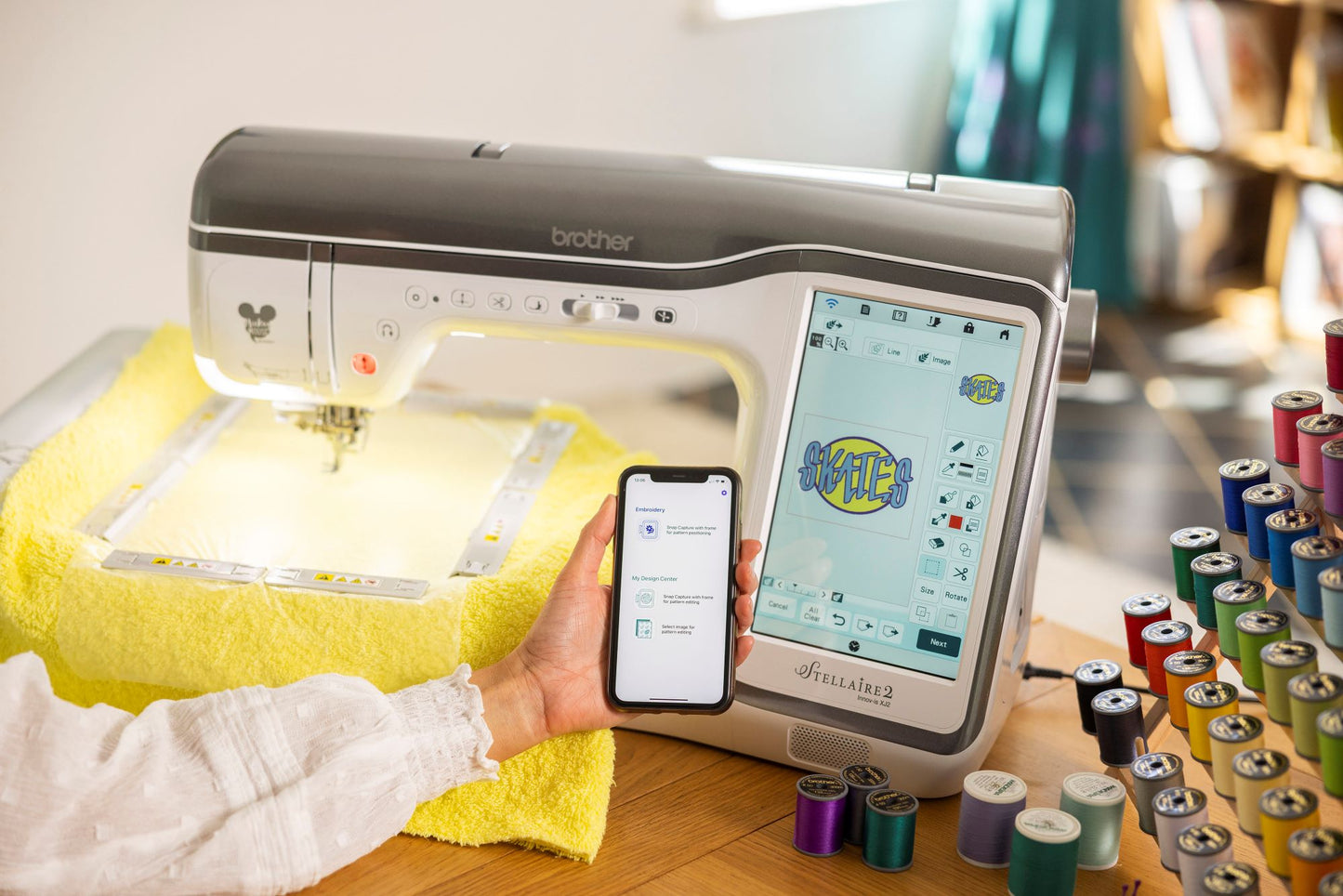

App connectivity
Create your own designs with My Design Center and Artspira, create your own stitches with My Custom Stitch, get perfect placement with My Design Snap, keep an eye on your work whatever you’re doing with My Stitch Monitor and connect to your ScanNCut DX with My Connection.

LCD Display
Large and clear 10.1” (800 x 1280px) built-in HD LCD display.

Intuitive user interface
Easy-to-use screen layout and realistic preview of selected stitches and patterns.

USB connectivity
Two high-speed ports, can connect by mouse as well as optional external USB embroidery card reader.

Multilingual operational languages
12 built-in languages.

Safety features
Easily disengage needle to make changing presser feet and needles safer, and lock the screen to avoid any accidental stitch changes.

Updates
Automatic software update capability.

Embroidery Features
Embroidery area
Large 14 x 9.5” / 360 x 240mm embroidery area.

Embroidery speed
Embroidery up to 1,050 stitches per minute.

Built-in designs
Total 889 embroidery patterns including 101 Disney, monogram, and buttonhole shapes.

Built-in fonts
Built-in 26 embroidery fonts (24 alphabet and 2 Cyrillic). Two fonts include the full Eastern European font set.

Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment.

Font sizes
S/M/L size for font designs.

Built-in frame designs
140 frame pattern combinations.

Thread trimming
Jump stitch thread trimming with thread wiper.

Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters.

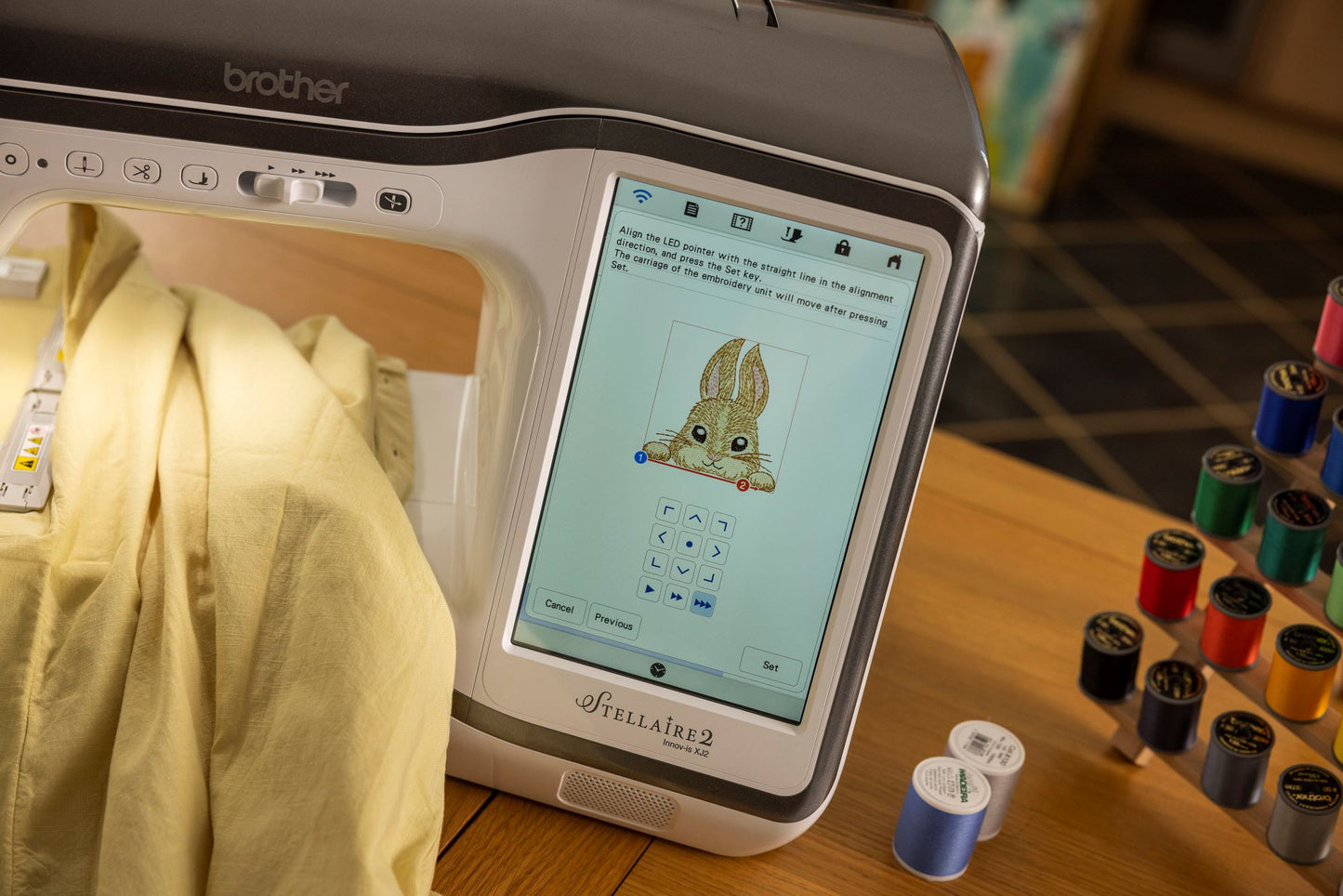

LED pointer
Laser pointer for precise pattern placement.

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 10 and 90 degrees), drag and drop operation, zoom up to 800% in My Design Centre and 200% otherwise.

Basting
Embroidery basting.

Colour Shuffling
Colour shuffling function that can choose from your favourite thread brands with more colour variations, with pinning, and favourite mark capability.

Stippling
No-fuss stippling in embroidery edit.

Selecting designs
Advanced multiple design selection.

Colour change
Direct touch button for changing colours of embroidery patterns.

Resume function
Resume your embroidery at the exact spot where you stopped in case of a power failure or accidental interruption.

Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop with automatic best-placement repetition.

Optimised colour sorting
Quickly sort colours in different designs for optimised sewing order and to minimise thread changes.

Frame detection
Automatic embroidery frame size detection.

Progress bar
View the progress of an embroidery pattern or individual colour, and use to move forwards/backwards through the design.

Thread palettes
Select various thread brands for built-in and external designs and save up to nine of your favourite combinations.

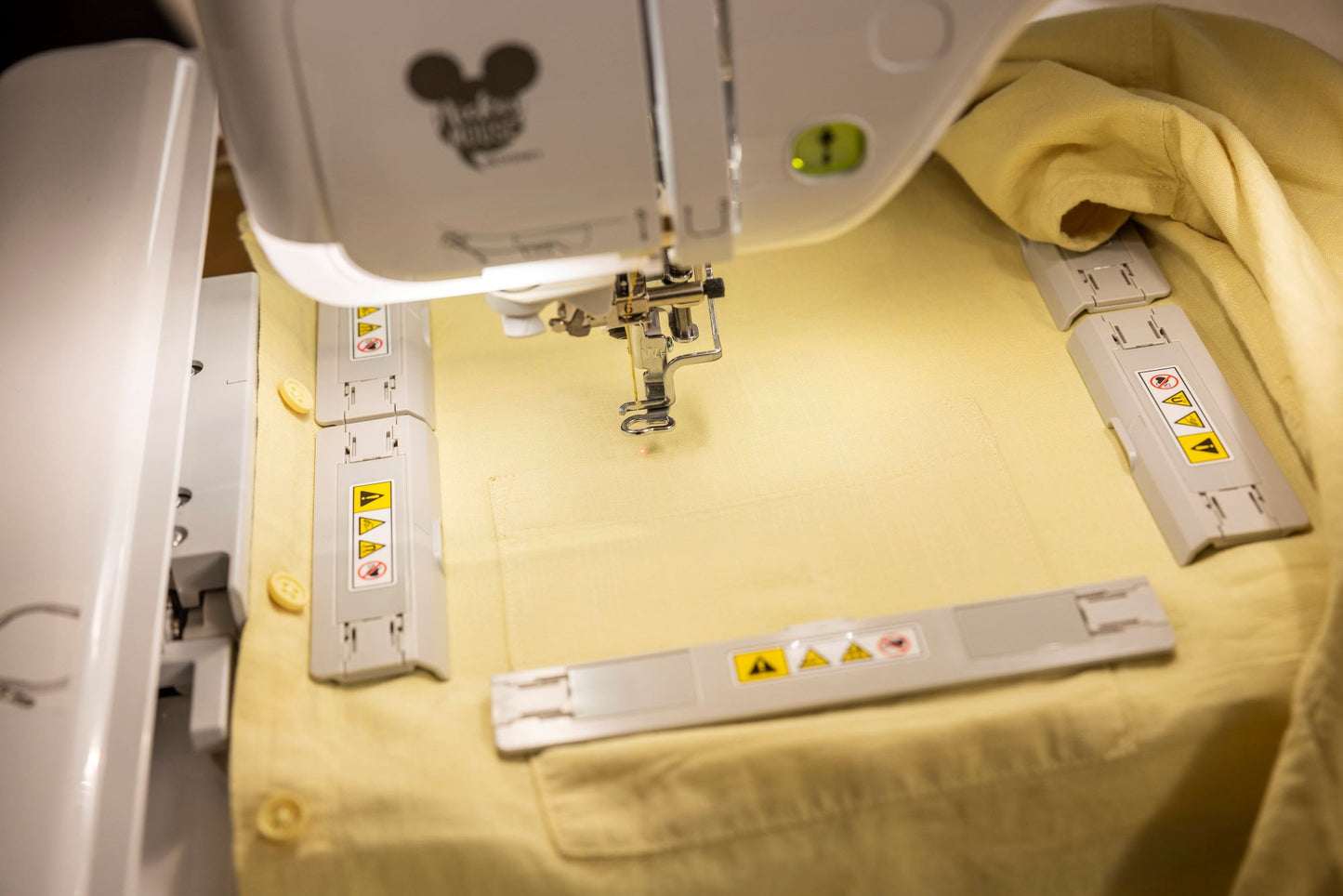

Included frames
Two standard frames, compatible with My Design Snap, included – 360 x 240mm (14 x 9.5”) and 180 x 130mm (7 x 5”).



Sewing Features
Built-in sewing stitches
Total of 760 utility and decorative stitches and buttonholes.

Lettering fonts
Four sewing lettering fonts (3 Alphabet, 1 Cyrillic).

Sewing speed
Sew up to 1,050 stitches per minute.

Combination stitches
Individual adjustment for combined stitches (depending on category).

My Custom Stitch™
Combine and edit custom stitches; includes 185 built-in sample stitches.

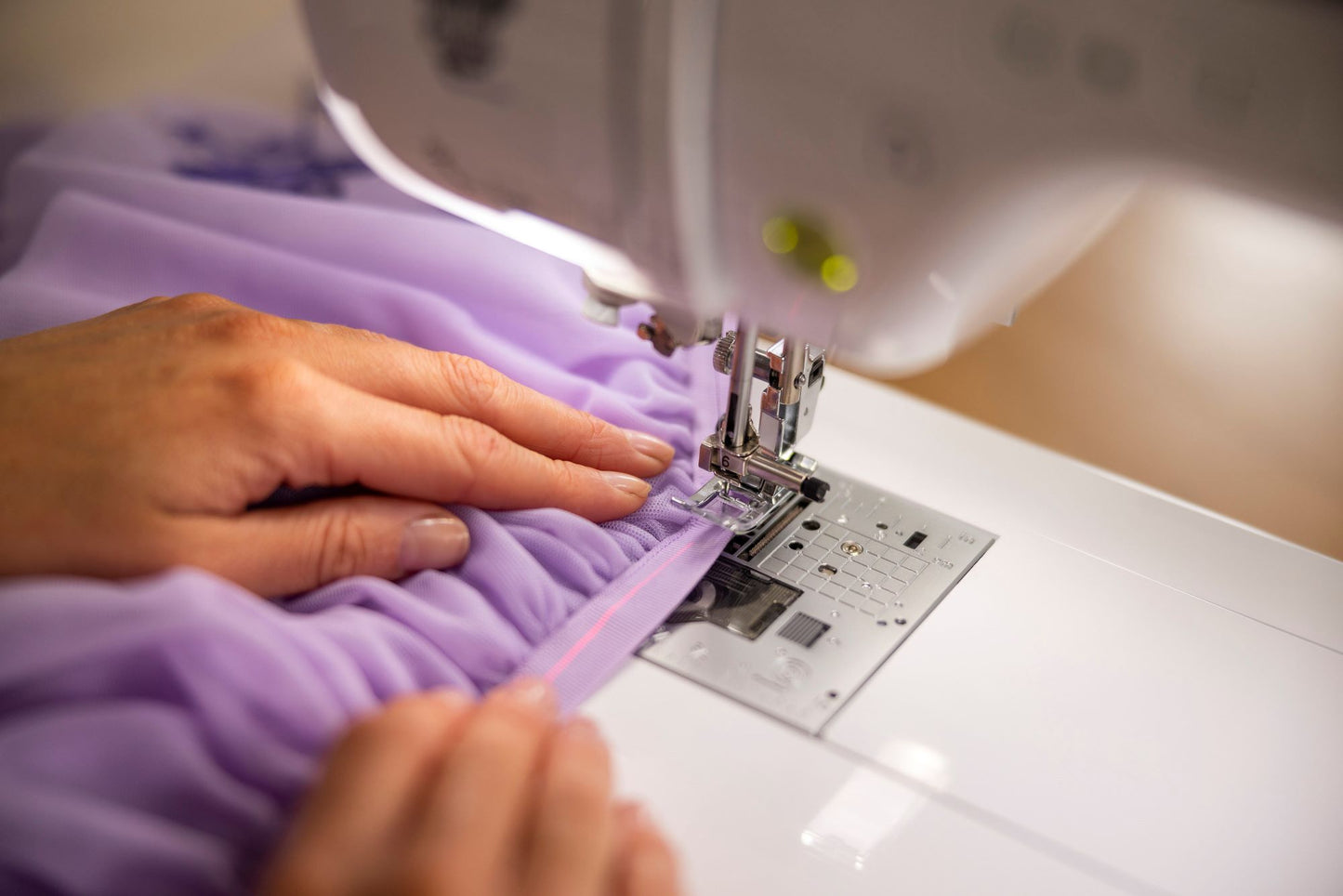

Laser guideline marker
Guideline marker with 19mm side shift capability.

ICAPS fabric sensor system
Continuously adjusts presser foot pressure and auto detects fabric thickness.

Automatic presser foot pressure
Automatic Height Adjuster (AHA) for automatic presser foot pressure.

Lock stitch
Reinforcement stitch at start and end of sewing.

Dual feed
Digital Dual Feed System for even and consistent sewing on all fabrics.

Pivot and foot height
Lightning-quick pivoting functionality with customisable foot height.

Square Feed Drive System
Square feeding system with powerful and long feed dogs.

Needle plate detector
Needle plate detector for safe operation.

Easy to remove needle plate
Swap needle plates easily with new designed tool.

Straight stitch
Straight stitch needle plate and straight stitch foot included.

Sashiko designs
Three new sashiko stitches.

New feet and accessories
New N Foot included for monogramming, couching foot, and more.

Ruler
Ruler design with zero mark at the needle.

Free motion
Presser foot height adjusts according to the thickness of the fabric.

Drop feed function
Convert to free motion mode easily with a touch of a button on screen.

Automatic presser foot functions
Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal.

Ergonomic multi-function foot controller
Can be programmed to cut threads, reverse stitch, sew one stitch, needle up/down and No Sew function.
