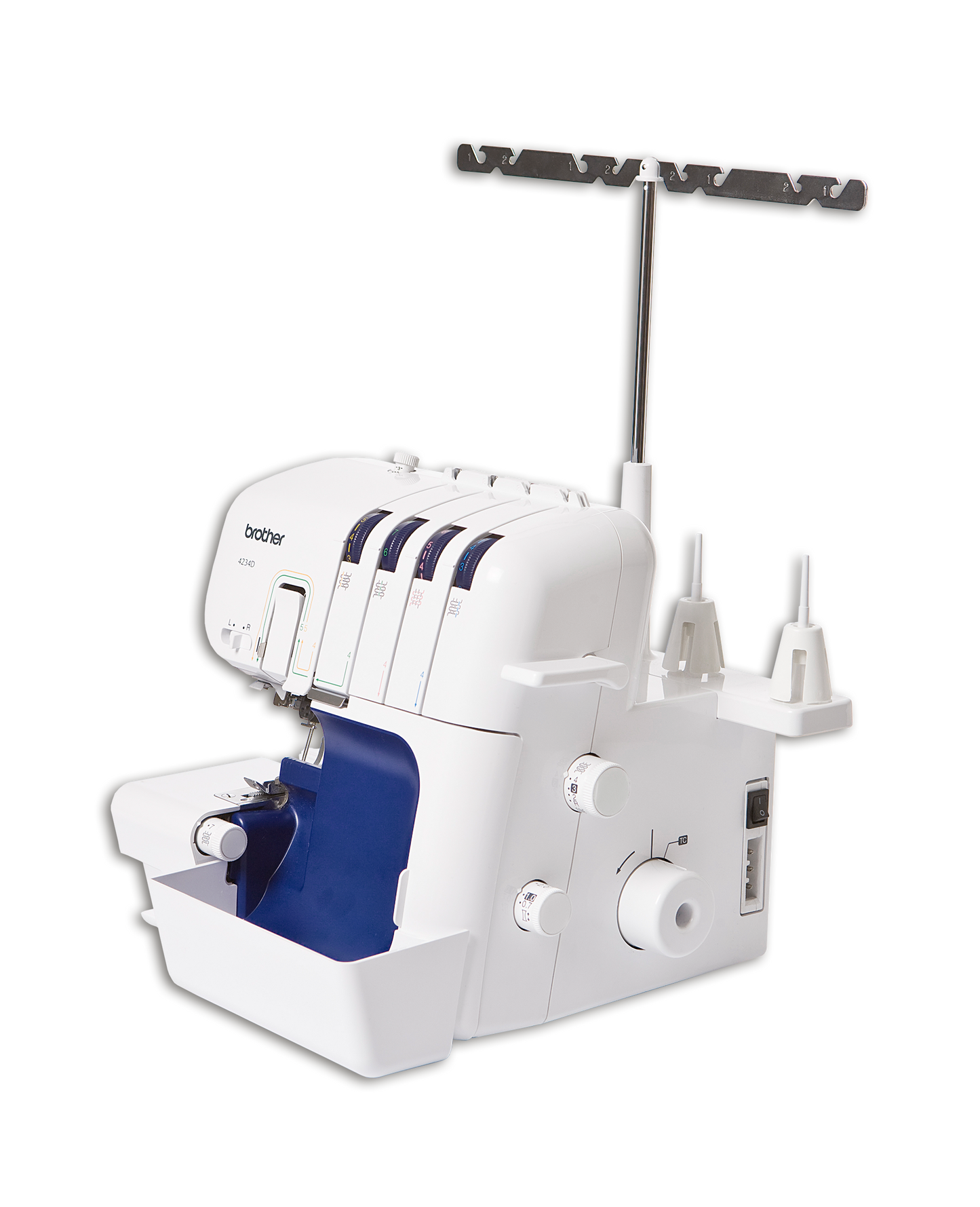

Brother M4234D Overlocker

Brother M4234D Overlocker

Regular price £499.00
Regular price Sale price £499.00
Sale Sold out
The award-winning Brother 4234D overlock offers professionally hemmed seams and decorative finishes at a great price point.

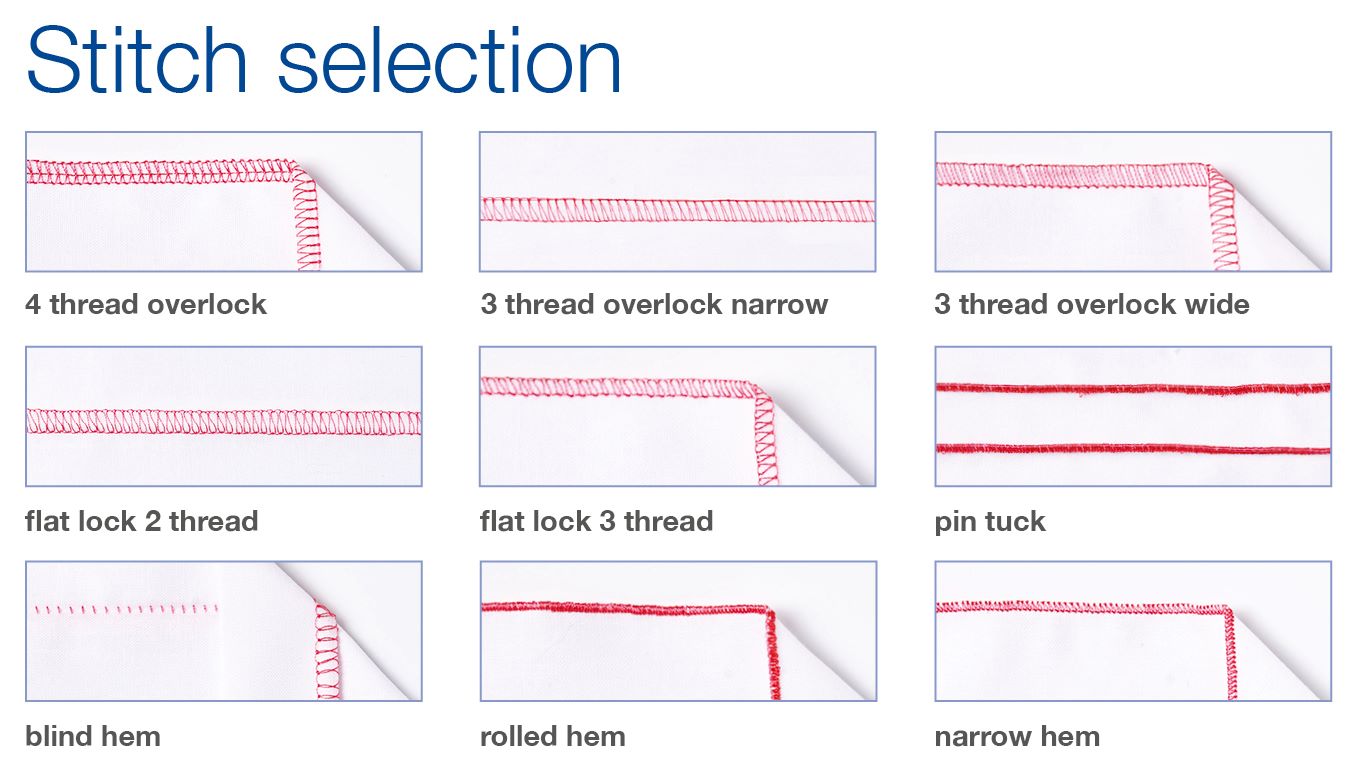

The 4234D lets you sew all of the following stitches: 4 thread overlock, 3 thread overlock narrow, 3 thread overlock wide, flat lock 2 thread, flat lock 3 thread, pin tuck, blind hem, rolled hem and narrow hem.

It features a needle threader, easy to-follow thread guide, and F.A.S.T. lower looper threading system, while the free-arm/flatbed convertible sewing surface gives you plenty of control and helps ensure you produce excellent results every time

With 100+ years of heritage in the sewing industry, we’re delighted that our design prowess was recognised in the iF Product Design Awards 2012, where the 4234D picked up the Gold Award.




2, 3 or 4 thread, cut and sew overlock stitches

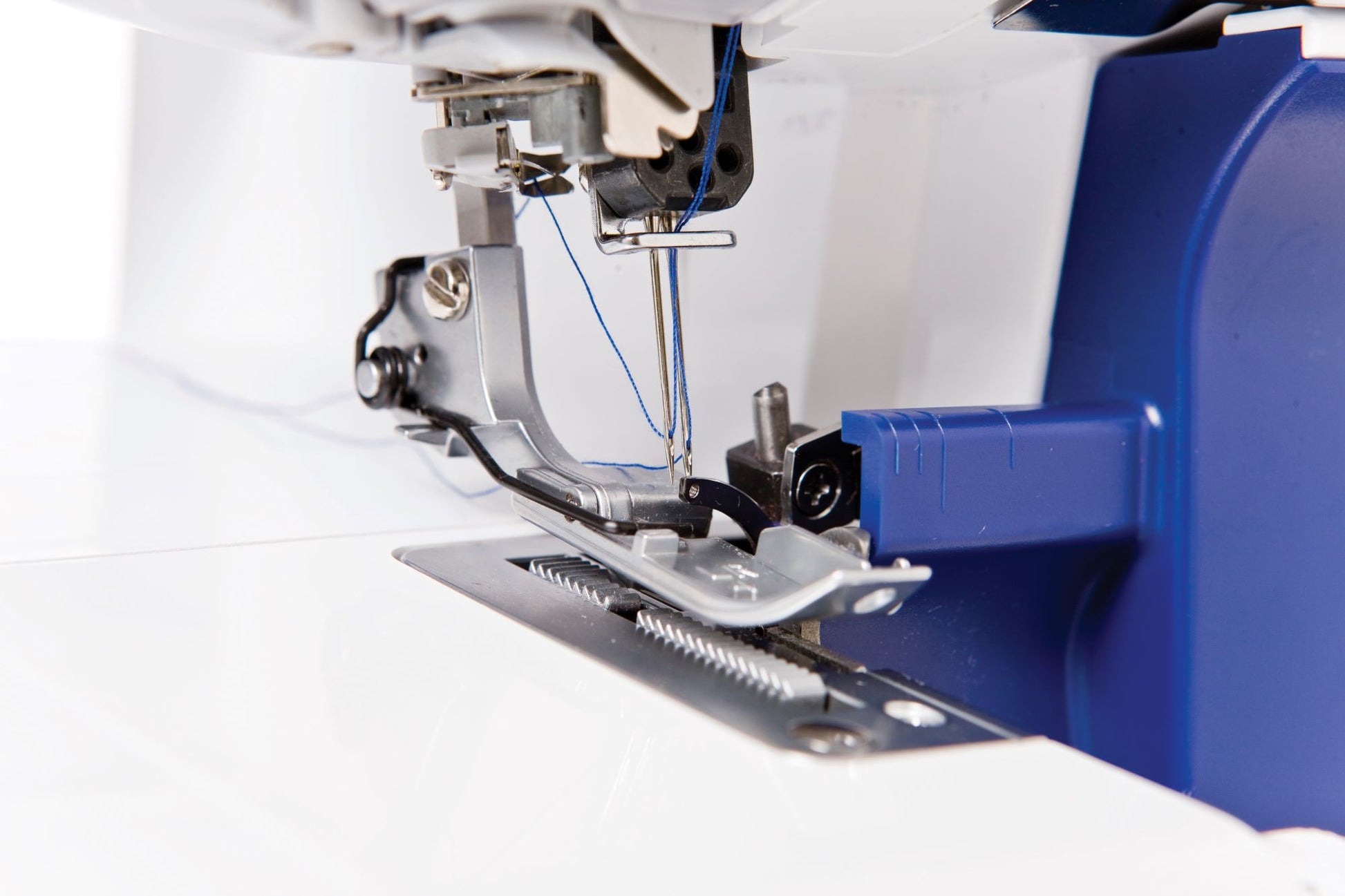

Needle threader
F.A.S.T. (Fast and Simple Threading) lower looper threading system
Differential feed for perfect seaming on virtually any fabric type
Stitch length and stitch width adjustment

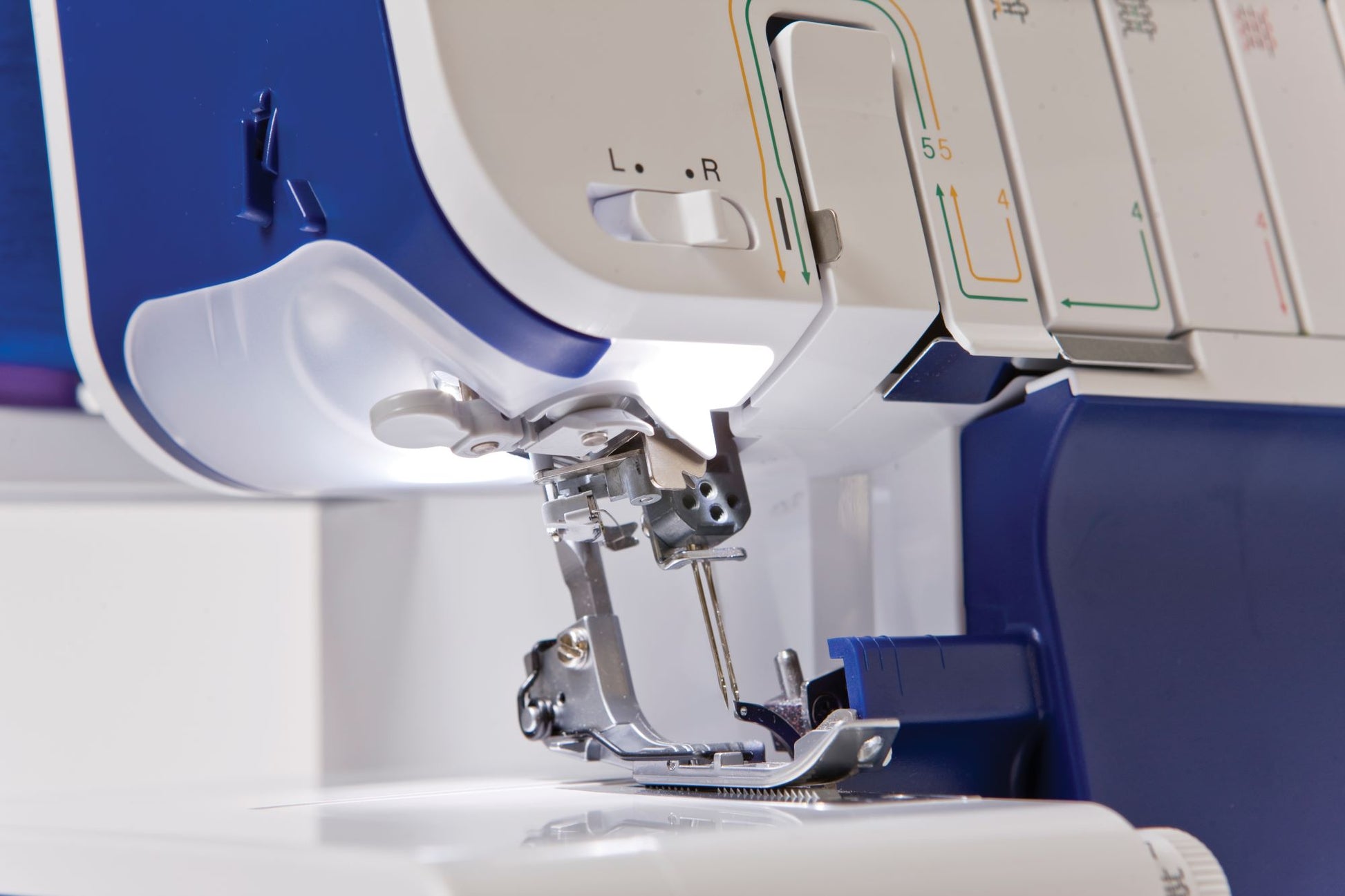

Extra bright LED light
Free arm flatbed
Presser foot pressure adjustment


Change for Rolled Hem Stitch Finger Removing
Differential Feed Yes
Free Arm Sewing Yes
Hardware Type Mechanical
Knife Drive Type Lower Drive
Lighting LED
Lower Looper Threading Method Retractable Type
Needle Threader Yes
Pressure Foot Pressure Yes
Stitch Length (Overlook Stitch) 2.0 - 4.0mm
Stitch Length (Narrow/Rolled Hemming) 1.0 - 2.0mm Narrow Hem, 5.0 - 0.7mm Rolled Hem
Stitch Type 1 Needle 3 Threads Overlook Stitch, 2 Needle 4 Threads Overlock Stitch
Stitch Width 5.0 - 7.0mm from Left Needle
Thread Tension Upper Dial Type
Threading Type Fast and Simple, Lower Looper Threading System

3 Thread Overlock Narrow 2.8mm Yes
3 Thread Overlock Wide 5mm Yes
4 Thread Overlook Yes
Blind Hem Yes
Flat Lock 2 Thread Yes
Flat Lock 3 Thread Yes
Narrow Hem Yes
Pin Tuck Yes
Rolled Hem Yes


Soft Cover
• Accessory Bag
• Tweezers
• Thread Net x4
• Thread Spool Cap x4
• Cleaning Brush
• Hexagonal Driver
• Needle Set
• Foot Control
• Thread Change Assembly

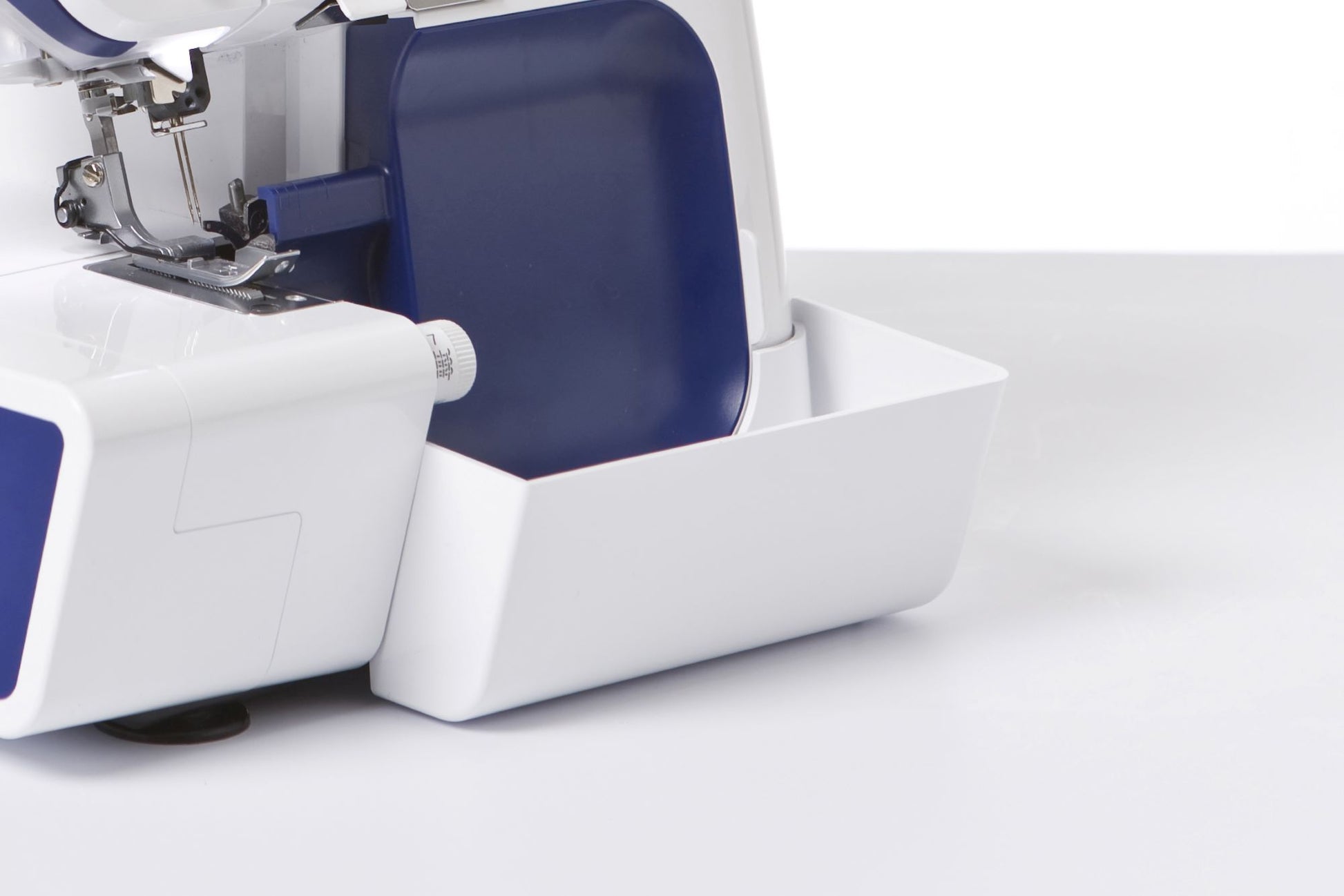

• Trim Trap
• Stitch Finger “W”
• Blind Stitch Foot


3 Year Guarantee
