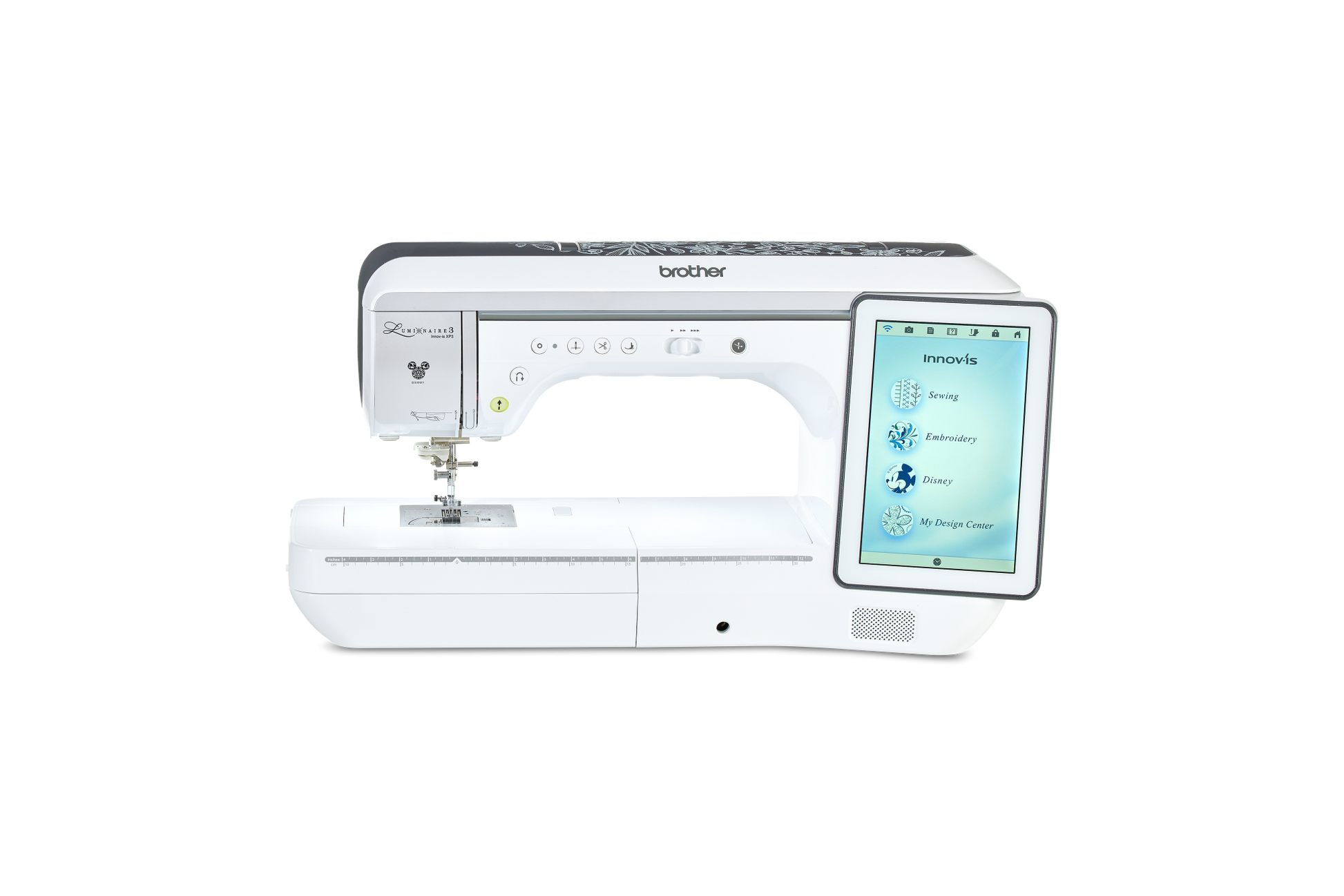

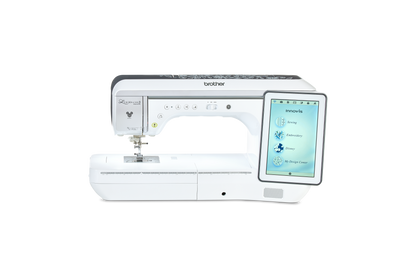

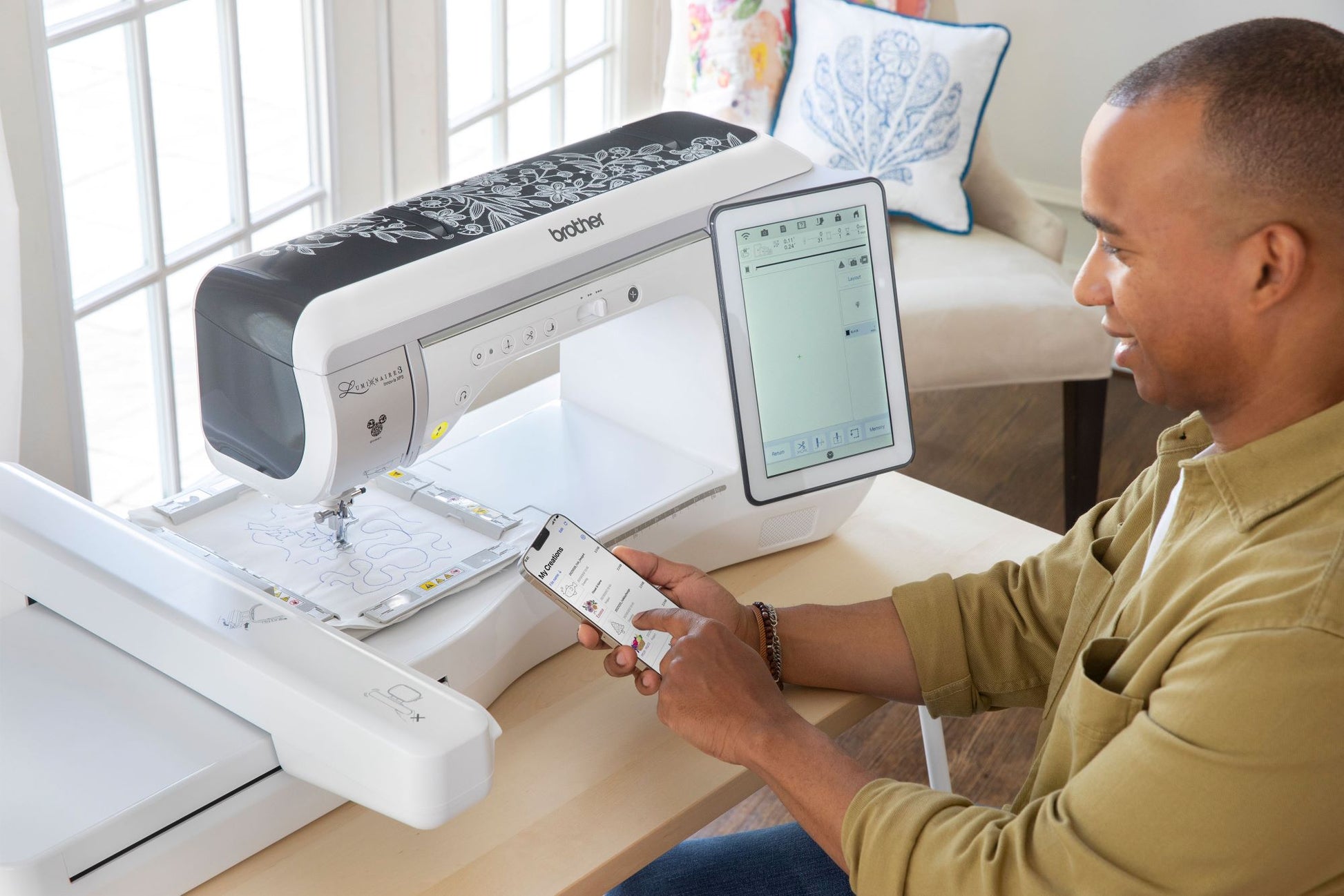

Brother Innovis XP3 Sewing & Embroidery Machine OFFER

Brother Innovis XP3 Sewing & Embroidery Machine OFFER

Regular price £10,999.00
Regular price £13,499.00 Sale price £10,999.00
Sale Sold out

SAVE £2500 until 30/6/24

The Luminaire Innov-is XP3 is the ultimate word in luxury sewing experience. Packed with Brother’s revolutionary Stitchvision projection technology, over 1,500 embroidery patterns, 844 stitch designs, Disney magic, built-in design capabilities and wireless connectivity, it’s a machine that’s as brilliant as your ideas.

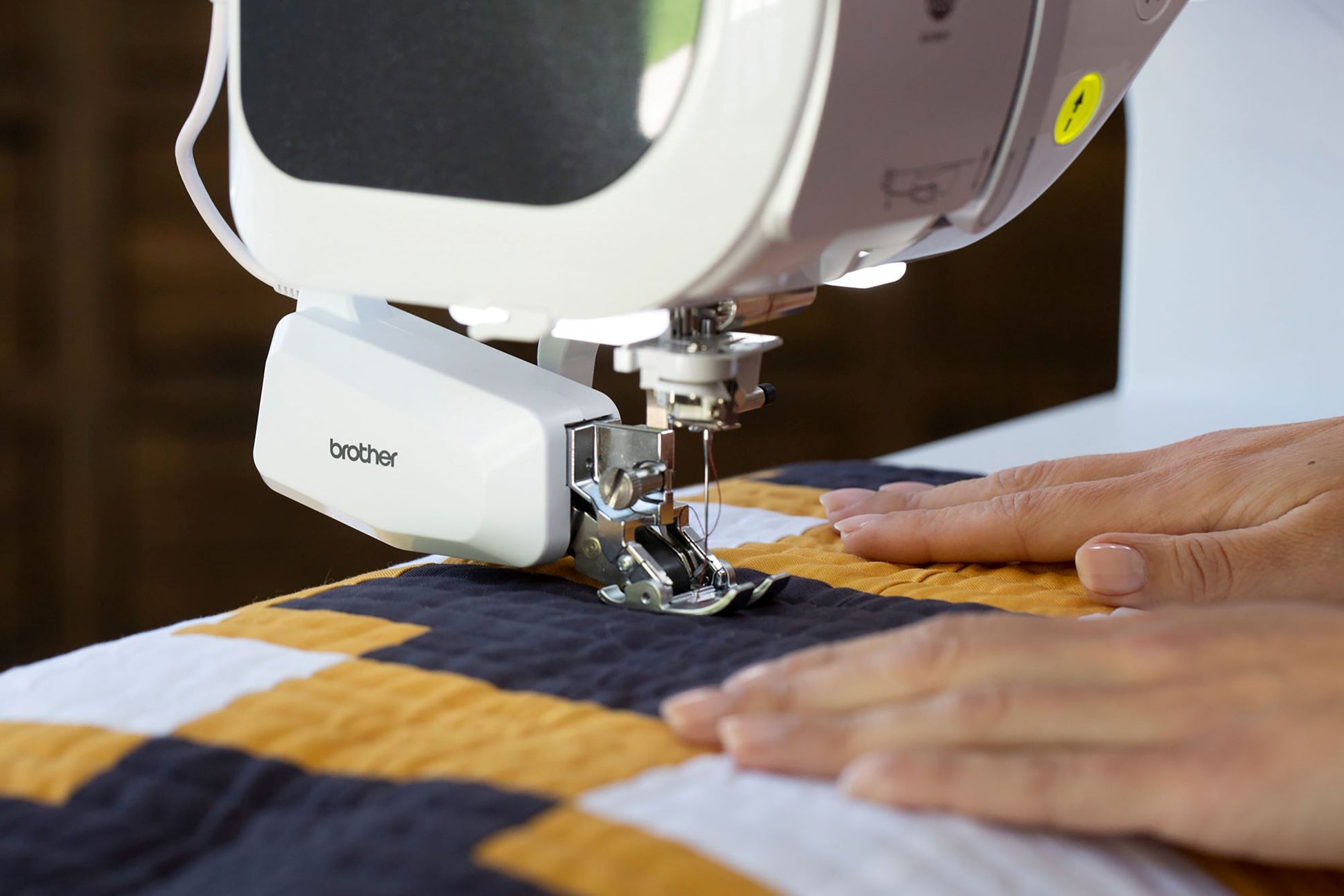

Stitch with consistent quality, tie-off stitches at the touch of a button, feed denims and silks with ease, automatically sew buttonholes.

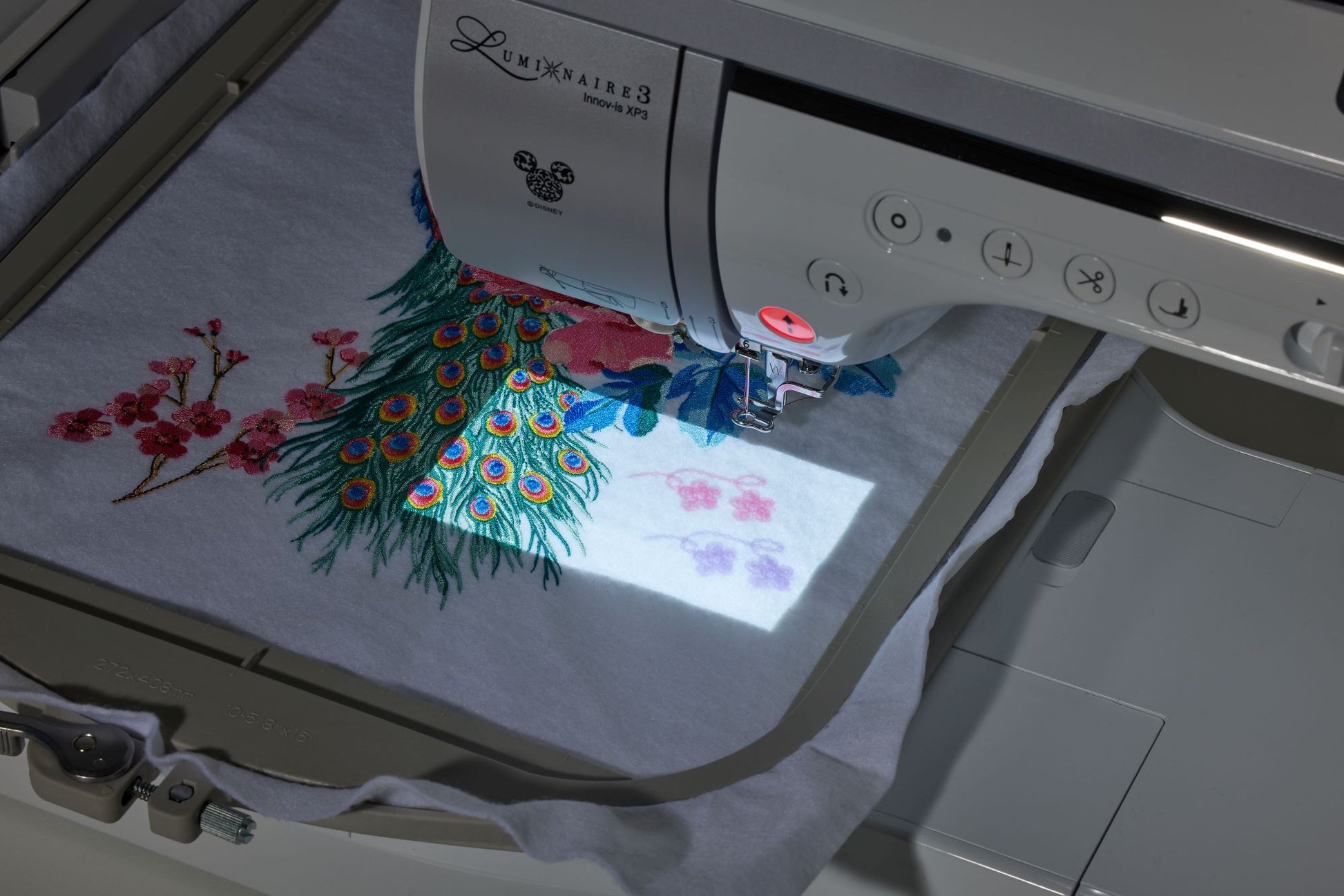

With StitchVision technology unlock the precise placement of stitches and embroidery designs. With our InnovEye technology you can even convert scanned images into embroidery data in just a few seconds – with no extra software required.

The ability to scan the entire embroidery area provides virtually endless creative options and helps take the guesswork out of your projects.

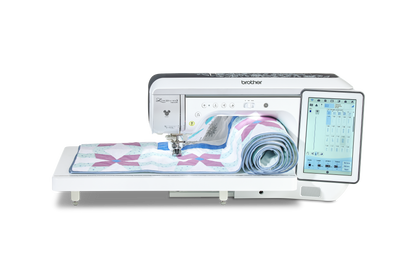

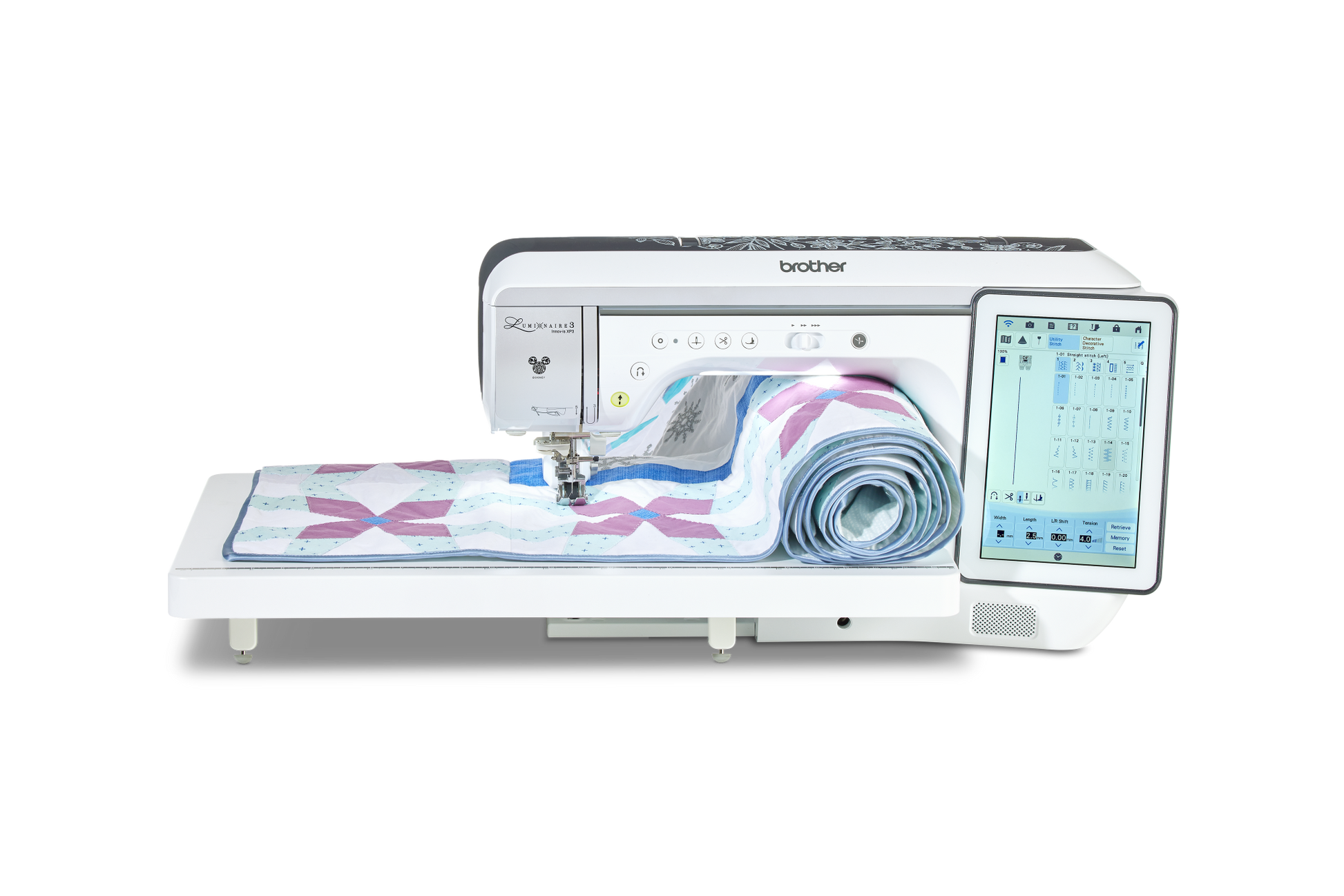

Size really does matter on the Luminaire XP3. With Brother’s largest workspace, longest arm and biggest embroidery frame oversize projects are effortlessly accommodated. Enjoy endless quilting with the Luminaire’s edge-to-edge quilting capability.

The Luminaire XP3 has powerful wireless capabilities, so you can transfer embroidery designs directly from your PC. You can even send your images from a smart phone or tablet, get alerts when it’s time to change thread and enable multiple Brother machines to work together. You can even connect your ScanNCut.

FREE DELIVERY

FREE UK DELIVERY

GENERAL FEATURES

Revolutionary built-in projector
Brother’s largest embroidery frame – 408 x 272 mm (16 x 10.7")
Super long arm 13.1" (332 mm) workspace
Hyper wide-view camera
Camera detecting buttonhole function
Over 1,500 embroidery designs – 192 are Disney!
My Design Center

TECHNICAL SPECIFICATIONS

Accessory Box Yes
Accessory Compartment Yes
Bobbin Type Horizontal
Machine Type Electronic
Insertion of Bobbin Quick Set Bobbin
Instructional Manual PDF Viewer Yes
Lighting 8 LEDs
Number Of Needles 1
One-Finger Needle Plate Removal Yes


Colour Shuffling Yes
Creating a Custom Thread Table Yes
Echo Quilting Around the Motif Button Yes
Embroidery Frame Clearance for Bobbin Change Yes
Font Size Selection (L-M-S) Yes
Jump Stitch Trim Yes
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Text Input Yes
My Design Center Yes more enhanced

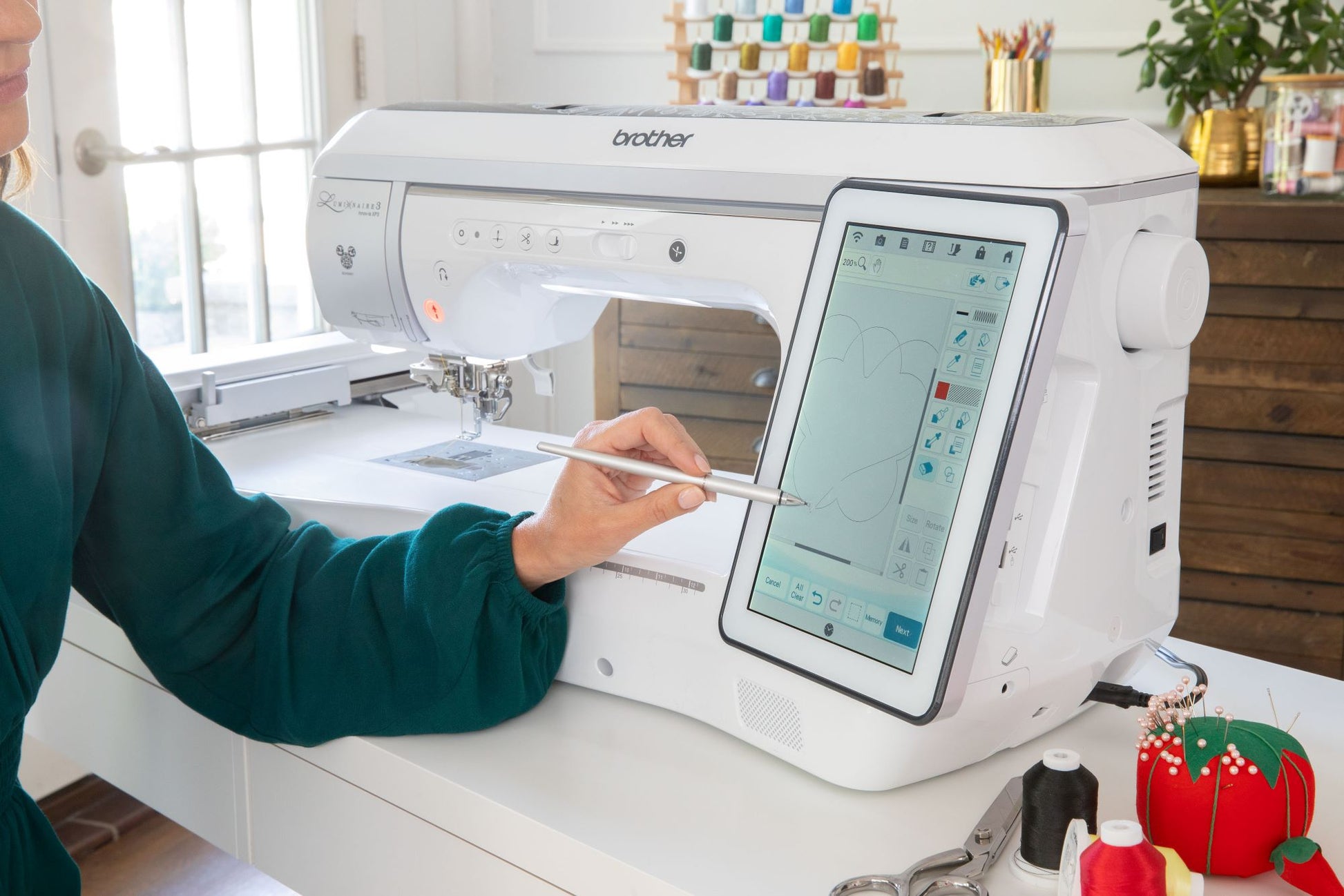

New UI (Slide Scroll Operation) Yes, Enhanced (Slide Scrolling, Pinch-in/out, Flick)
Number of Hoops (Standard Accessory) 4
Number of Spool Stands 2
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Progress Indication Bar Yes
Realistic Preview of Patterns Yes
Redo/Undo When Embroidery Editing Yes
Single Colour Pattern Converter Yes
Stippling Function Trapunto-like Camera Scan and Add Stippling/ Stippling in Embroidery Edit/ Free Hand Quilitng
Thread Colour Sorting Yes
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 28
Built-In Patterns 1554
Camera with Scan Function (Built-in Camera) Background Scanning, Image Scanning, Live Camera Positioning, Viewing needle drop point
Converting scanned images to embroidery data Yes with My Design Center
Couching Embroidery Yes
Embroidery Area in mm 408 x 272
Embroidery Positioning Function Live camera positioning, Projector embroidery
Extension Wide Table Optional
Font Editing Functions/Multiple Lines and Alignment (L-C-R) L-C-R
Frames Included 100 x 100 mm (4 x 4”), 180 x 130 mm (7 x 5”), 360 x 240 mm (14 x 9.5”), 408 x 272 mm (16 x 10.7”)
LED Pointer Embroidery foot included
My Design Snap Mobile app for perfect placement of embroidery designs
Projector Embroidery Pointer Yes


7 Point Feed Dog Yes
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 3
Camera Detecting Buttonhole foot Yes
Circular Sewing Optional
Continuous Automatic Pressure System (ICAPS) Yes
Customizable Presser Foot Movement Yes with enhanced UI
Drop feed setting Electronic
Electronic slide speed control yes
Extension Wide Table Optional
Free Motion Embroidery Kit Optional
Knee lift 5 Steps Electronic
Lock stitch button Yes
Longer Feed Dog Yes
Longer J-Foot Yes
Max. Sewing Speed (Stitches per minute) 1050
Max Sewing Speed for Decorative Stitches 710
Mechanical Dual Feed Optional
Multi-Directional Sewing Yes (up to 8 sideways)
My Custom Stitch Yes
Needle Stop Position Control Up/Down Yes
Projector Guideline Marker Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (cm) 33.3
Buttonholes 25
Combine stitches Yes
Direct Dual Feed Yes
End Point Setting Pin Function Yes
Free arm sewing Yes
Mirror imaging Yes
Multi-function foot controller Yes
Number of sewing stitches *incl. buttonholes 844
Presser Foot Levelling Button Yes
Projector Gridline Marker Yes (gridlines, 3 colours)
Repeated single sewing Yes
SFDS (Square Feed Drive System) Yes
Stitch Length (mm) 5
Stitch Width (mm) 7

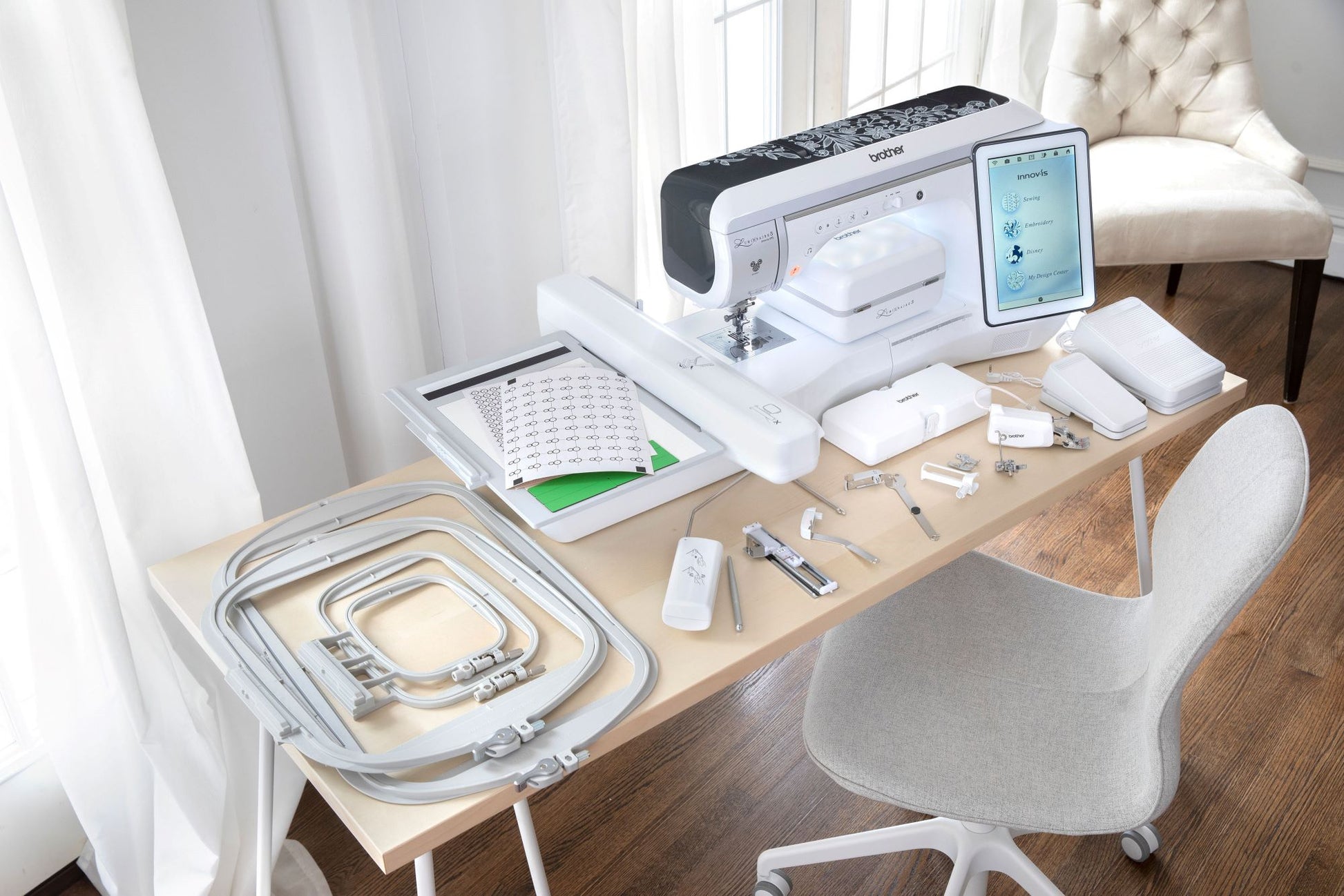

IN THE BOX

Zigzag foot “J” (on machine)
Advanced monogramming foot „N+“
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A+”
Buttonhole foot stabilizer
Blind stitch foot “R”
Button fitting foot “M”
Compact dual feed foot
Regular dual feed foot (on compact dual feed foot)
Straight stitch foot
Free motion quilting foot “C”
Free motion echo quilting foot “E”
Free motion open toe quilting foot “O”
Embroidery Foot “W”
¼“ Quilting Foot (Piecing Foot) with Guide
Adapter
Screw (small)
Needle set
Twin needle
Ball point needle set
Bobbin × 10 (One bobbin is on machine.)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Multi-purpose screwdriver
Spool cap (small)
Spool cap (medium) × 2 (One spool cap is on machine.)
Spool cap (large)
Thread spool insert (mini king thread spool)
Spool Stand
Spool cap (XL) x 2
Spool holder x 2
Spool cap base x 2
Spool felt x 2
Ring x 4
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Knee Lifter
Alternate bobbin case (no colour on the screw)
Standard bobbin case (green marking on the screw) (on machine)
Straight Stitch Needle Plate
Cord guide bobbin cover (with single hole)
Bobbin cover (with mark) (on straight stitch neelde plate)
Bobbin cover (on machine)
Embroidery frame (medium) H 100 mm × W 100 mm (H 4 inches × W 4 inches)
Embroidery frame (large) H 180 mm ×W 130 mm (H 7 inches × W 5 inches)
Embroidery frame H 272 mm × W 272 mm (H 10-5/8 inches × W 10-5/8 inches)
Embroidery frame (LL) H 408 mm × W 272 mm (H 16 inches × W 10-5/8 inches)
Scanning frame
Magnet × 6
Embroidery bobbin thread
Embroidery positioning sticker sheets x 2
White calibration stickers (solid)
Stabilizer material
Grid sheet set
Chalk pencil
Dual purpose stylus
Dual purpose stylus holder
Accessory case
Advanced multi-function foot controller
- Main foot controller
- Side pedal
- Mounting plate
- Mounting screw × 2
Couching dual feed foot
Yarn guide for sewing couching
Embroidery couching foot “Y”
Yarn guide for embroidery couching
Yarn threader
End point stickers (4 sheets, 243 stickers per sheet)
Fine tipped stylus pen
Dust cover
Operation Manual (Sewing)
Operation Manual (Embroidery)
Embroidery Design Guide
Disney Design Guide

GUARANTEE

Brother 5 year Warranty *Commercial use only 1 year warranty

SIZE AND WEIGHT

Machine Dimension (mm) 690 x 322 x 349
Weight (kg) 20
