Brother Innovis M380D Sewing & Embroidery Machine

Brother Innovis M380D Sewing & Embroidery Machine

Regular price £1,199.00
Regular price Sale price £1,199.00
Sale Sold out

Stitch excitement into everything you make on the Innov-is M380D sewing, quilting and embroidery machine. There are 200 built-in designs, of which 65 are Disney. Plus, with 181 built-in stitches, including 10 buttonholes, your projects will always be truly original.

Add a personal touch with 11 built-in embroidery and 4 lettering fonts. From monograms to feel good slogans, it’s time to express yourself!

Take that individuality even further with My Custom StitchTM. Use the colour LCD touchscreen to design your own stitches or edit the built-in designs. Save them to your machine for future use.

With on-screen editing you can take your creativity to infinity and beyond - flip, rotate, change the colour and repeat designs.

With a central panel including needle up/down button, slide speed controller, thread cutter and start/stop button, precision control is at your fingertips.

Reach for the sky and take your crafting even further. With wireless LAN connectivity you can download additional designs, or connect to Artspira, our new creative hub.




General Features

Advanced needle threading system
No more stress when threading. Follow the thread guide, and use the needle threader lever with one finger.

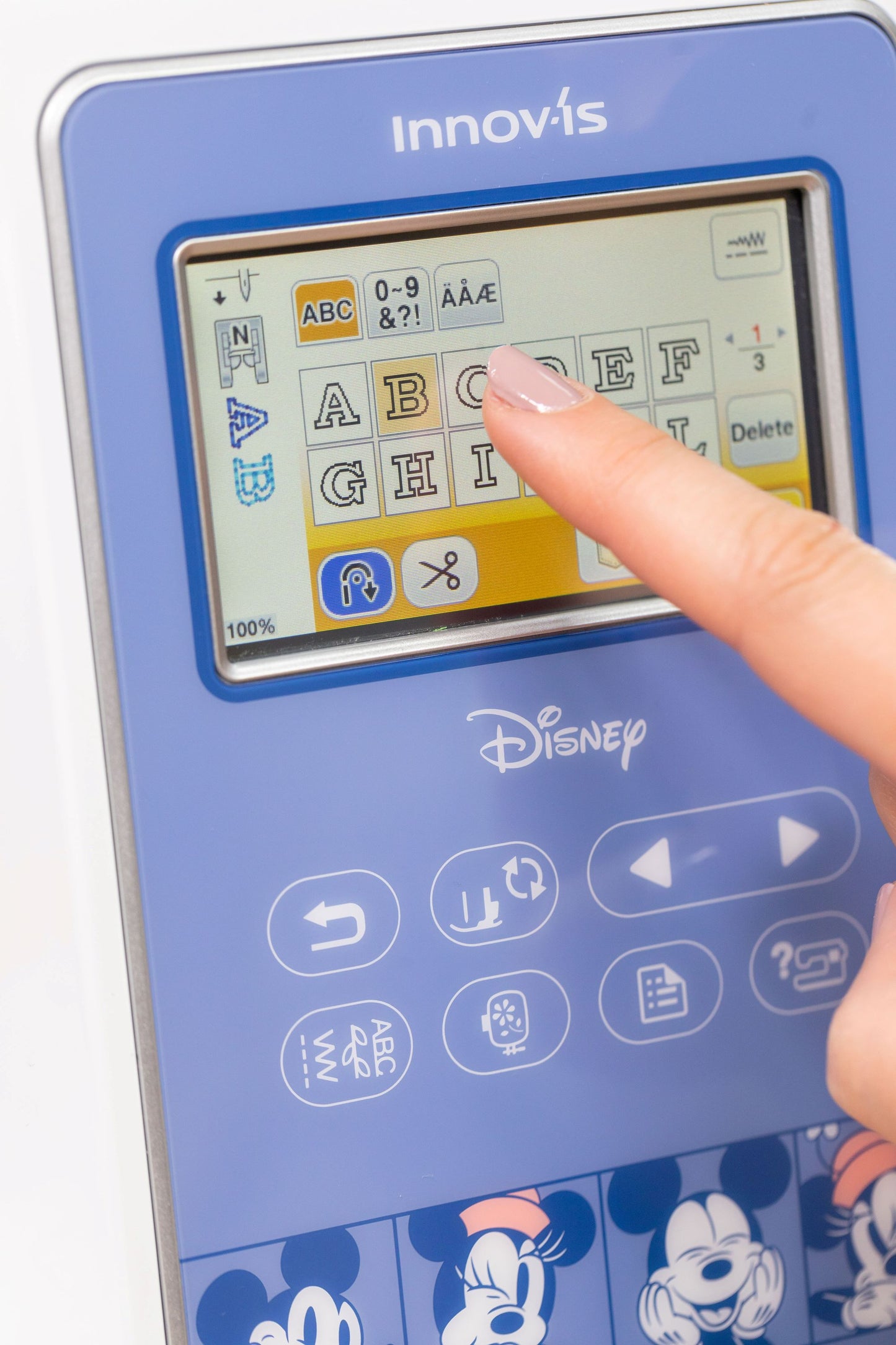

3.7’’ colour LCD touch screen
Manage all the functions with a simple touch of the easy-to-read, 3.7” LCD high resolution display (432 x 240 pixels). Includes icons and 15 languages.

Super bright LED Light
A bright, but gentle-on-the-eye light, makes it easier to work on dark fabrics.

Convenient controls
For ease of use, all operating buttons are on one convenient panel - thread cutter, needle position up/down, Start/Stop function.

Bobbin winding system
Quick and easy way to wind lower thread! Just load the bobbin on the winder and the thread guide will show you which way to go.

Quick-set bobbin
Just drop in a full bobbin and you’re ready to go.

Thread sensor
The Innov-is M380D is equipped with upper and lower thread sensors that warn when thread is broken or has run out.

Embroidery Features

200 Built-in embroidery designs, including 65 Disney designs
Stitch excitement into every piece of embroidery on the Innov-is M380D with 200 built-in designs, of which 65 are Disney.

11 Embroidery fonts
Add a personal touch with 11 built-in embroidery fonts. From monograms to feel good slogans, it’s time to express yourself!

100 x 100 mm Embroidery area
Just set the embroidery unit and frame, select the pattern and you’re ready to embroider. Additional frames are also available separately.

Wireless LAN connectivity
Reach for the sky and take your crafting even further. With wireless connectivity you can transfer additional designs using Design Database Transfer (for Windows devices only), or connect to Artspira, our new creative hub. Here you will find free designs and projects, or even draw your own custom designs.

USB port
Just insert a USB flash drive and load your embroidery design directly to the machine.

Combine embroidery patterns
Several designs can be showed at same time by pressing “Add” button.

Built-in embroidery frame patterns
14 stitch types can be combined with 10 different frame shapes such as a circle or a square.

Editing on the screen
Powerful editing features include the layout, pattern rotation in 1°, 10° & 90°, mirror imaging and scaling between 90 - 120%.

Compatible with other manufacturers' thread
In addition to the Brother thread chart, the Innov-is M380D recognizes threads from three other manufacturers.

Sewing Features

7 Point feed
Provides a smooth feeding action and superior stitch quality on any weight of fabric.

Free arm sewing
Remove the accessories storage compartment for free arm sewing. Sew small continuous items like armholes, cuffs etc with ease.

Convenient controls
For ease of use, all operating buttons are on one convenient panel - thread cutter, needle position up/down, Start/Stop function.

4 lettering styles (sewing)
Add different lettering styles for labels and monograming projects.

Automatic thread cutter
Cuts upper and lower thread automatically with the touch of a button.

181 Sewing stitches
Choose from 181 stitches built into the machine, giving you unlimited creativity. Also includes 10 one-step buttonhole styles.

My Custom StitchTM
Design your own stitch patterns or edit and change the built-in template designs and save for future use.

Drop feed lever
Easy-to-switch lever to drop feed dogs for free motion embroidery and quilting.

Slide speed
Adjusts speed from slow to fast. This can also be set to alter stitch width whilst sewing for zig-zag stitches.

Needle stop position
Select whether the needle should be up or down when the machine stops. Useful for turning fabric, sewing corners or joining quilt pieces.

Hard case
Carefully protects the machine when not in use.

Automatic reverse/ reinforcement stitch
The machine automatically sews reverse/reinforcement stitches at the beginning and end of sewing.

Mirror function
For more stitch variety use this function to create a mirror image of your stitch pattern.

Repeated single sewing
Choose whether the stitch pattern will be sewn once or repeatedly.

Combining stitches
Create your own stitch patterns by combining different stitches.

Snap-on presser feet
Quickly and easily change presser feet.


Accessory Compartment Yes
Bobbin Type Horizontal
Case Hard Case
Machine Type Electronic
Insertion of Bobbin Quick Set Bobbin
Lighting 1 LED
Number Of Needles 1

Embroidery Area in mm 100 x 100
Font Editing Functions/Multiple Lines and Alignment (L-C-R) C
Font Size Selection (L-M-S) Yes
Max Embroidery Speed (Stitches per Minute) 400
Number of Spool Stands 1
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery) 11
Built-In Patterns 200
Frames Included 100 x 100 mm (4 x 4”)

Bobbin Work Optional
Built-In Lettering Styles 4
Buttonholes 10
Circular Sewing Optional
Combine stitches Yes
Drop feed setting Manual
Electronic slide speed control yes
Extension Wide Table Optional
Free arm sewing Yes
Free Motion Embroidery Kit Optional
Longer Feed Dog Yes
Longer J-Foot Yes
Max. Sewing Speed (Stitches per minute) 850
Mirror imaging Yes
My Custom Stitch Yes
Needle Positions 15
Needle Stop Position Control Up/Down Yes
Repeated single sewing Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (cm) 15.7
Number of sewing stitches *incl. buttonholes 181
Stitch Length (mm) 5
Stitch Width (mm) 7

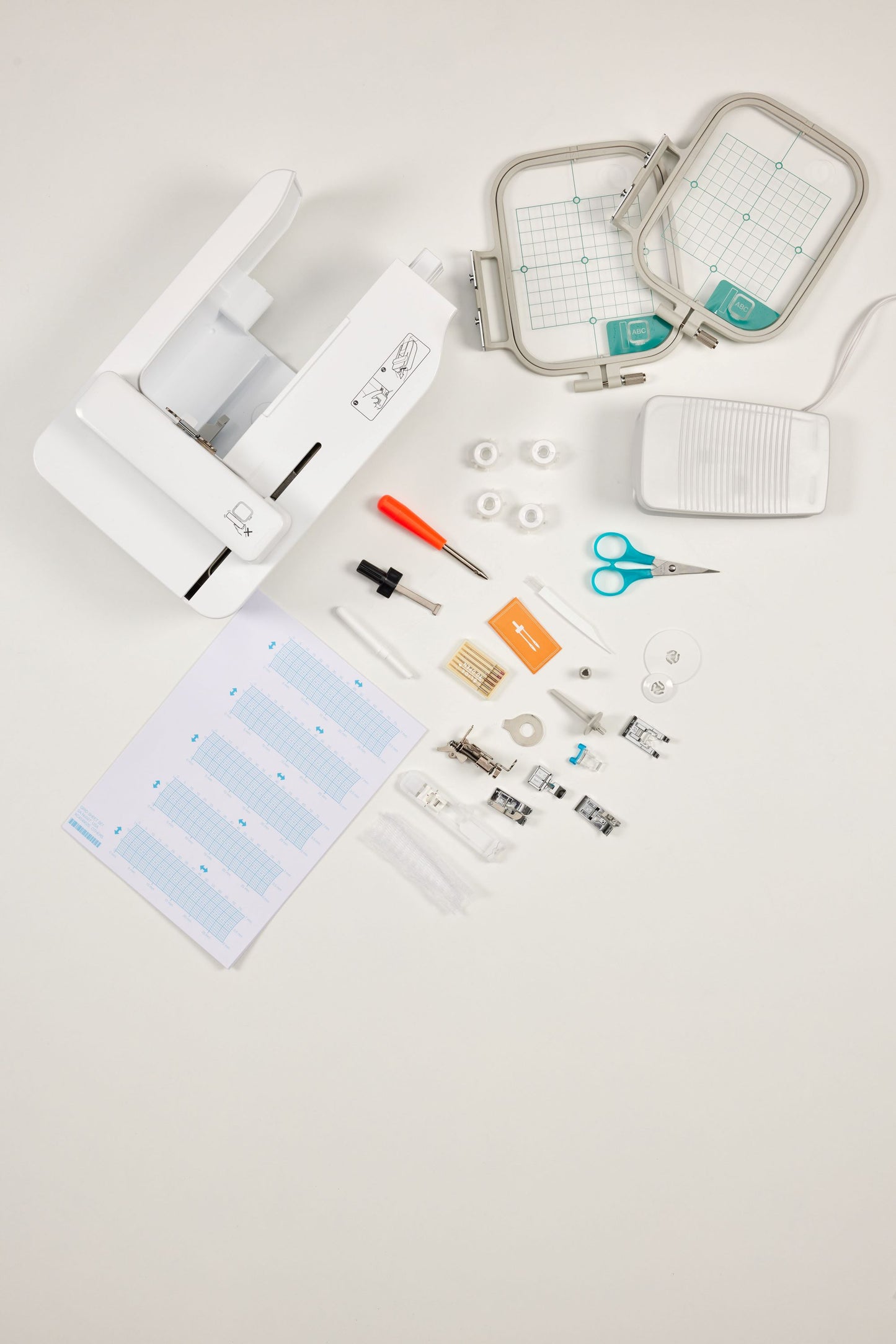

Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Blind stitch foot “R”
Button fitting foot “M”
Buttonhole foot “A”
Embroidery foot “Q”
Needle set
Twin needle
Bobbin (on machine)
Pre-wound bobbin x 4
Bobbin clip x 4
Seam ripper
Cleaning brush
Eyelet punch
Disc-shaped screwdriver
Extra spool pin
Spool cap (large)
Spool cap (medium) (on machine)
Spool cap (small)
Thread spool insert (mini king thread spool)
Spool net
Bobbin case (on machine)
Foot controller
Embroidery frame set (medium)10 cm (H) × 10 cm (W) (4 inches (H) × 4 inches (W))
Accessory bag
Hard case
Grid sheet set
Operation Manual
Quick Reference Guide
Embroidery Design Guide


3 Year Guarantee


Machine Dimension (mm) 419 x 194 x 307
Weight (kg) 6.8
