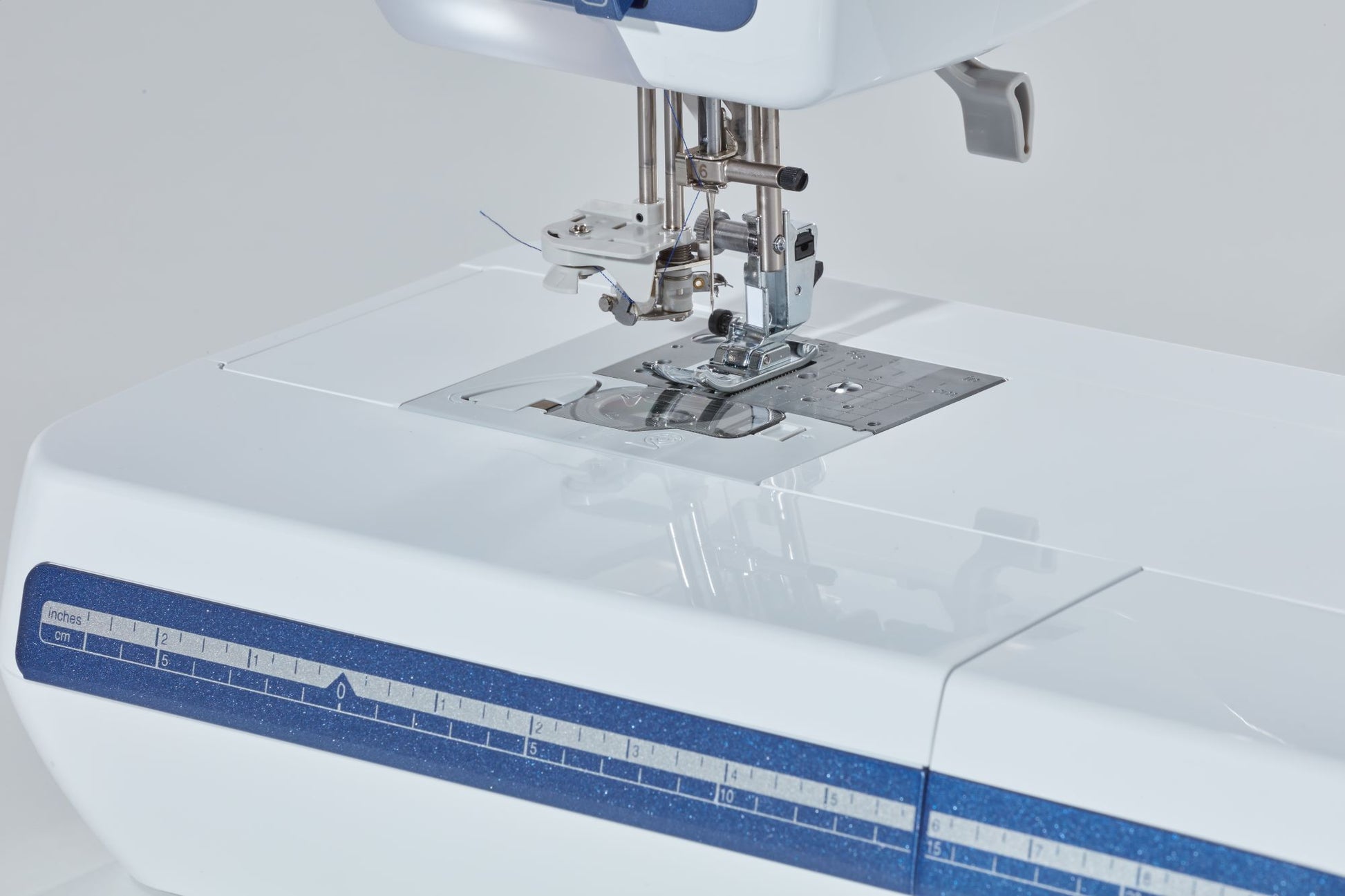

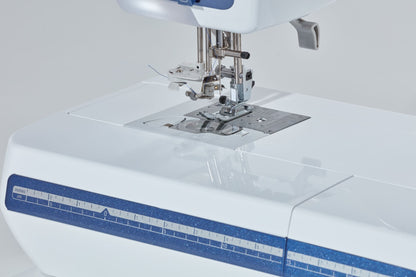

Automatic electronic needle threading
Threading the needle is so simple, just the touch of a button.

Central controls
Handy central controls help make sewing simpler.

Electronic touchpads
provide fingertip control.

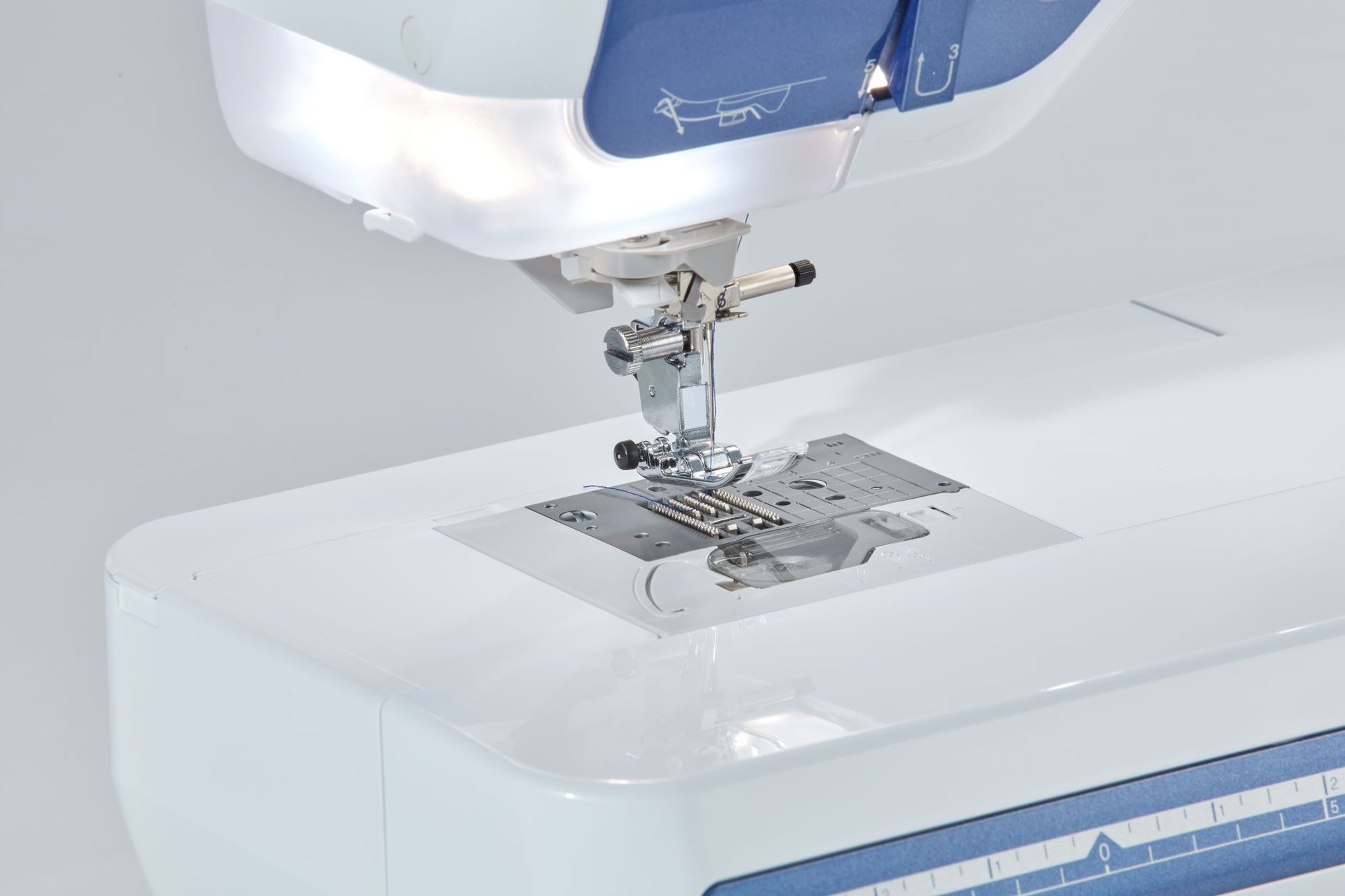

ICAPS
The Continuous Automatic Pressure System (ICAPS) detects fabric thickness while you sew. It automatically adjusts foot pressure giving you even, super smooth stitch length, even when stitching across differing fabric thicknesses. Perfect for free motion embroidery.

Knee lift
Free up your hands using the knee lift to raise/lower the presser foot. Ideal when you’ve got your hands full with large, bulky projects, like quilts.

Ultra-bright lighting
The V5LE’s ultra-bright LED lighting gives a crisp, bright, natural light, so you can see colours and stitch details easily, no matter what your lighting conditions. Fully adjustable, so you can set it at a level to suit you.

Lock stitch function
Use the lock stitch key to automatically tie off stitches at the beginning or the end of the stitch.

Square Feed Drive System (SFDS)
Super-smooth feeding for superior stitch quality, including sideways feeding.

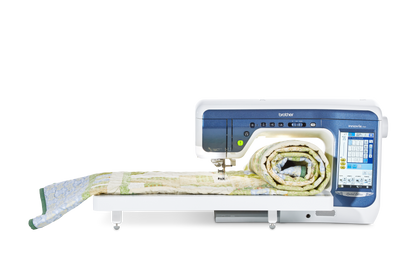

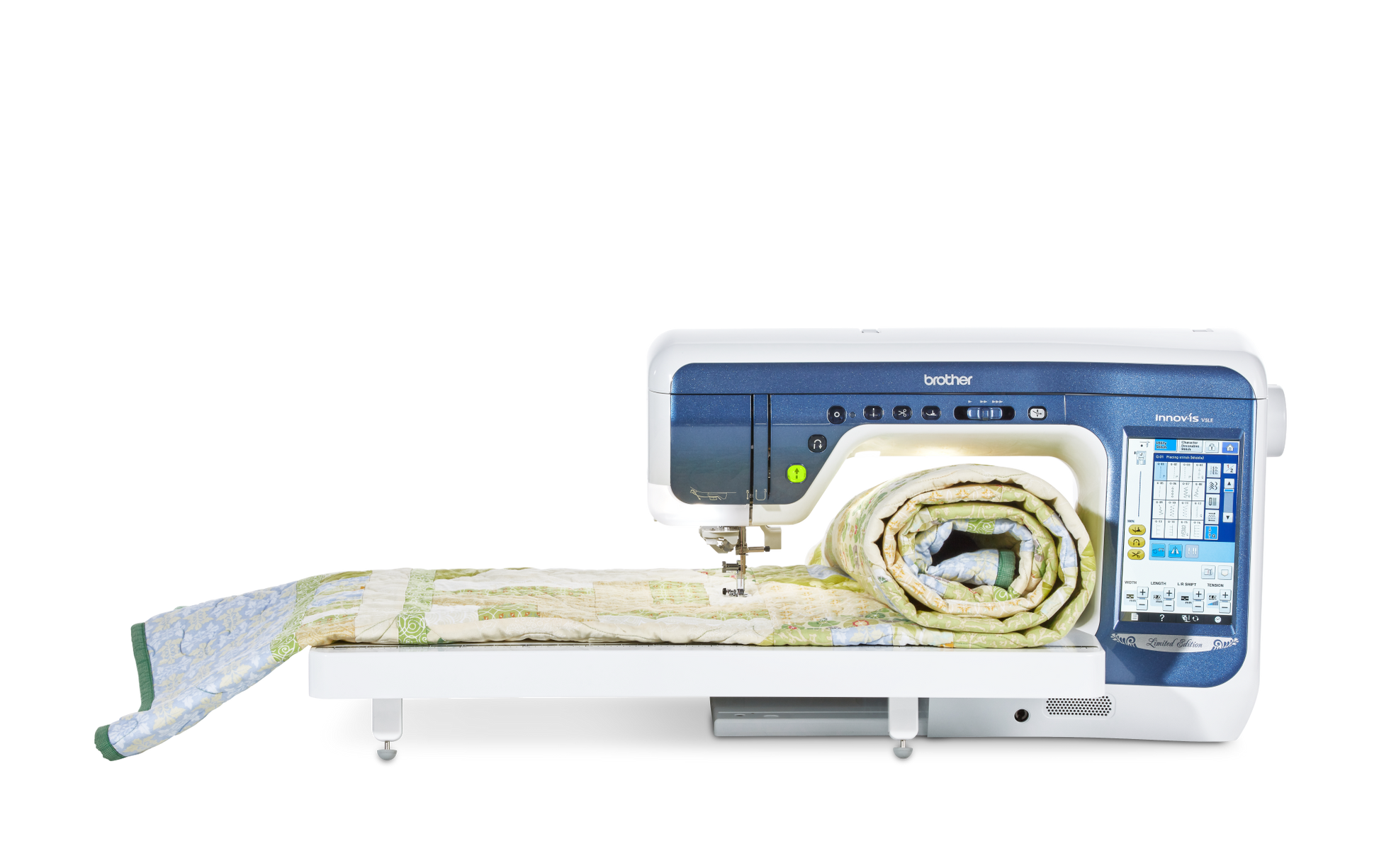

Extra-large sewing space
Sew even larger projects with the flexible, extra-large sewing space, ideal for quilting projects.

Quick set bobbin
Just drop in a full bobbin and you’re ready to sew!

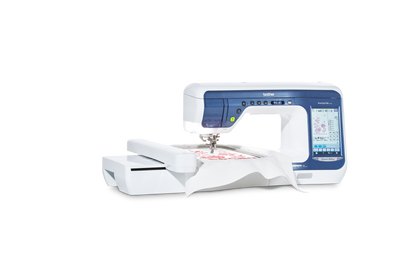

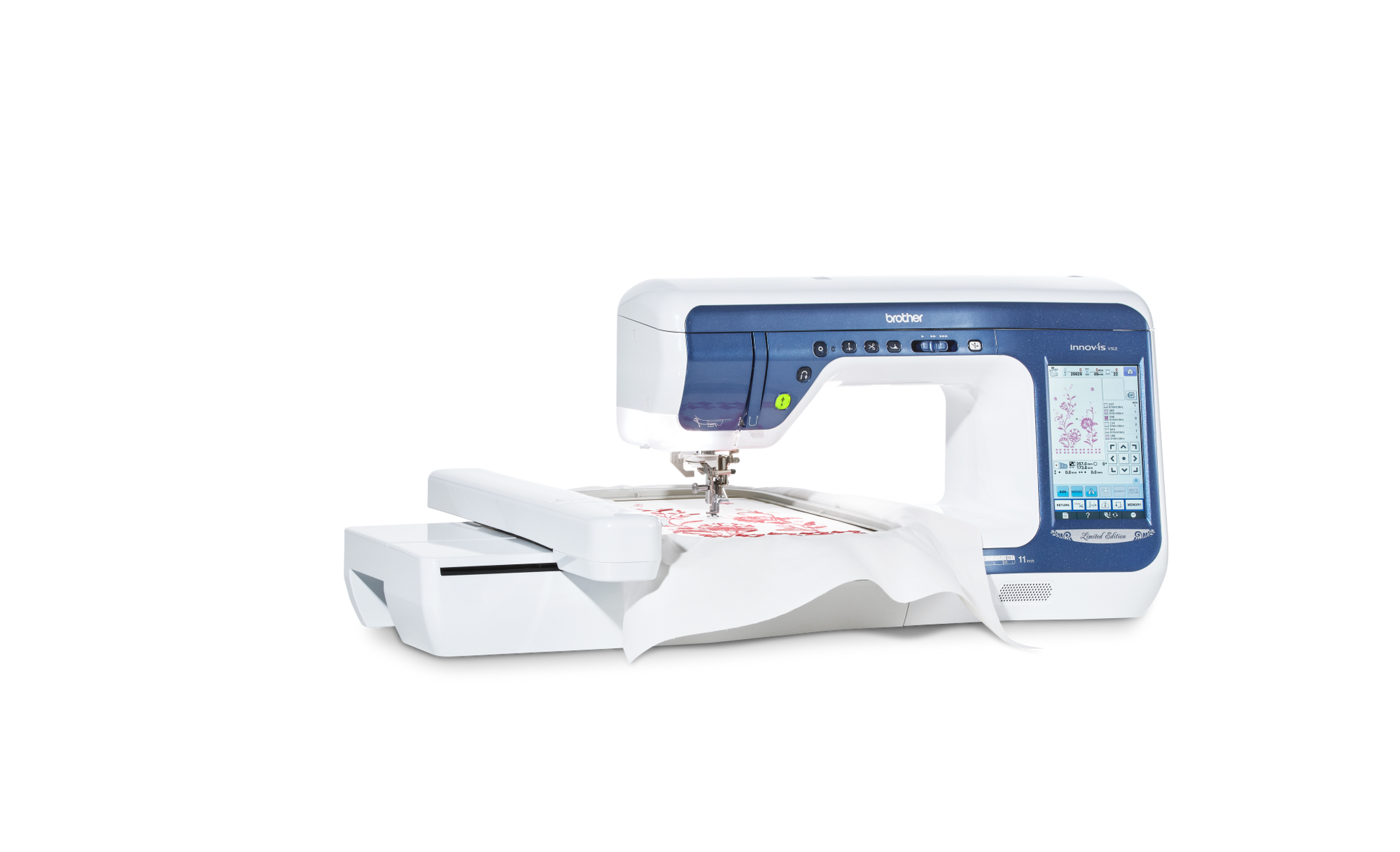

Large embroidery area 200 x 300mm (7.8 x 11.8”)
Create large embroidery designs with no need to re-hoop.

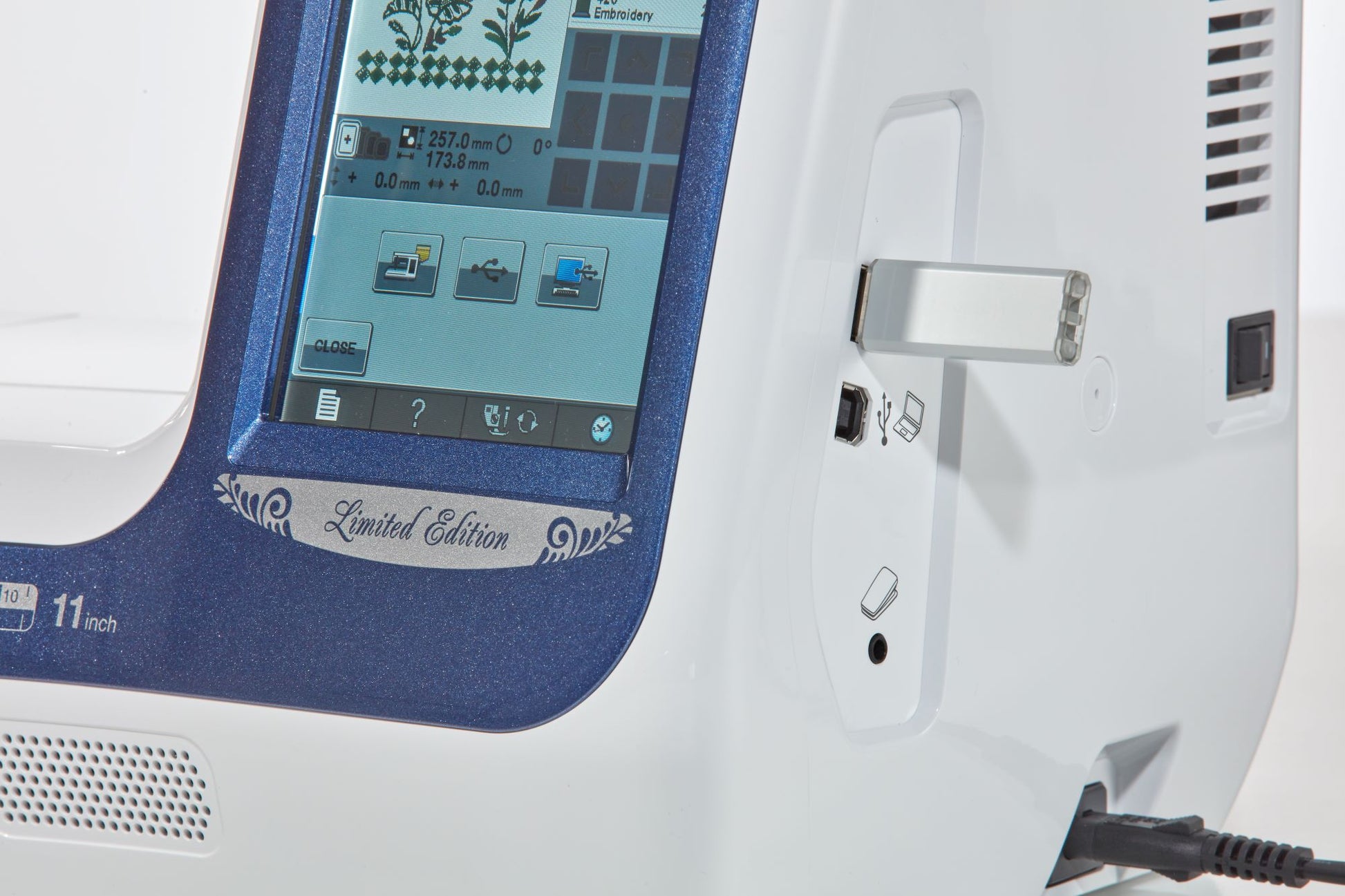

USB ports
Connect a USB device such as a memory stick or a card reader/writer.

Auto presser foot up/down function
Set the presser foot to automatically go down when you start sewing, and up when finished. Great when you need both hands free on large projects like quilts!

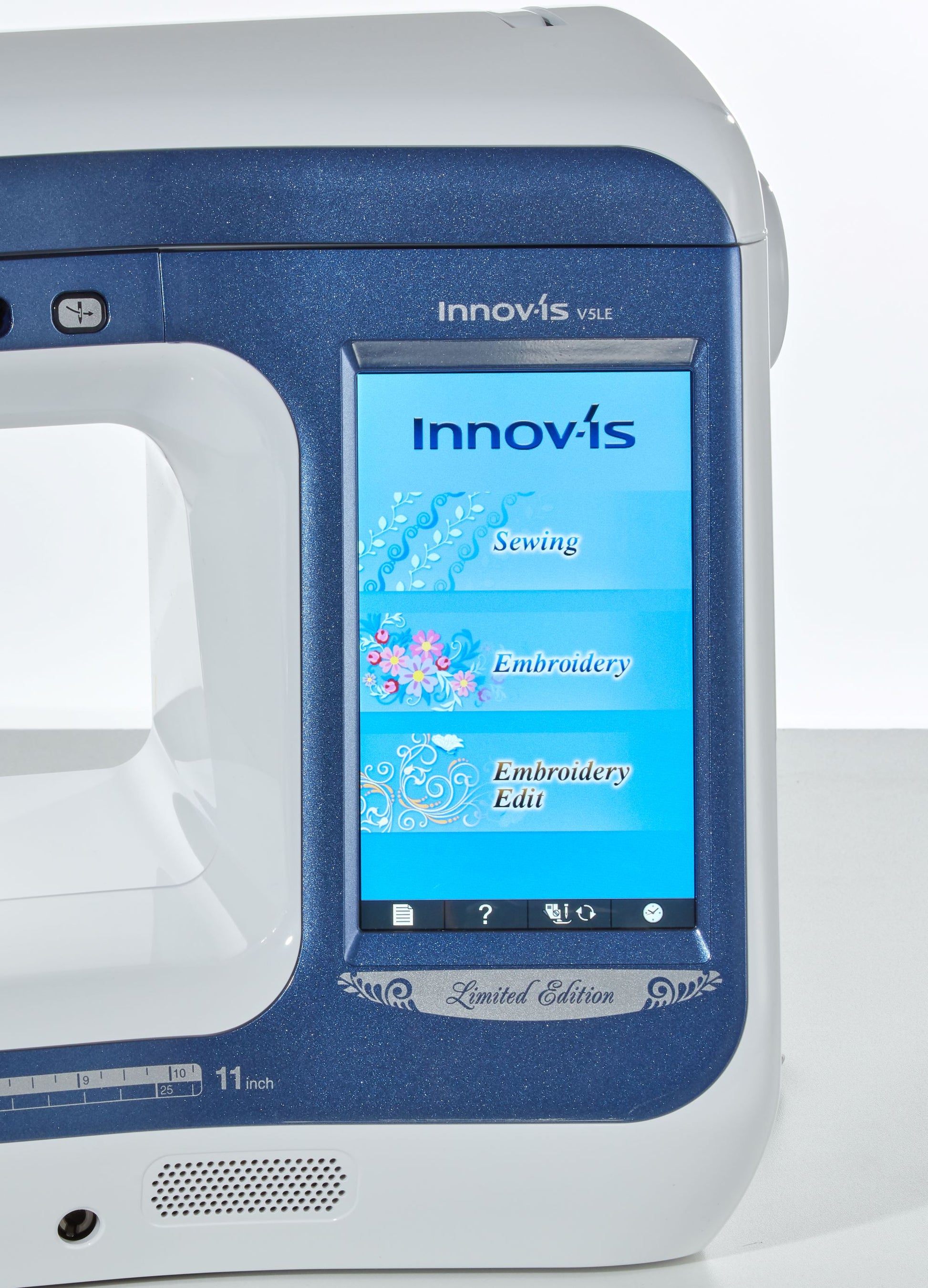

Extra-large colour touch screen
Simply touch the 7”/17.8cm wide-angle screen to:
• Edit on-screen embroidery
• Enhanced text editing
• Customise your settings
• Change to any one of the 13 built-in languages
• View on-screen video tutorials and help guides.

Display Size 7"
Built-in Embroidery Frame Patterns 140 (10 shapes x 14 stitch types)
Number of Hoops (Standard Accessory) 2
Built In Monogram Styles 64
Built-In Lettering Styles (Embroidery) 17
Built-In Patterns 652
Embroidery Area in mm 300 x 200
Font Editing Functions/Multiple Lines and Alignment (L-C-R) L-C-R
Font Size Selection (L-M-S) Yes
Frames Included 100 x 100 mm (4 x 4”), 300 x 200 mm (12 x 8”)
Jump Stitch Trim Yes
LED Pointer Optional
Max Embroidery Speed (Stitches per Minute) 1050
Number of Spool Stands 2
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Single Colour Pattern Converter Yes
Stippling Function Automatic / Free Hand Quilting


7 Point Feed Dog Yes - SFDS (Square Feed Drive System)
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Bobbin Work Optional
Built-In Lettering Styles 5
Buttonholes 14
Circular Sewing Optional
Combine stitches Yes
Continuous Automatic Pressure System (ICAPS) Yes
Direct Dual Feed Optional
Drop feed setting Electronic
Electronic slide speed control yes
Extension Wide Table Optional
Free arm sewing Yes
Free Motion Embroidery Kit Optional
Knee lift Yes
Lock stitch button Yes
Max. Sewing Speed (Stitches per minute) 1050
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 8 sideways)
Multi-function foot controller Optional
Needle Positions 29
Needle Stop Position Control Up/Down Yes
Number of sewing stitches *incl. buttonholes 652
Pivot function Yes
Presser Foot Levelling Button Yes
Repeated single sewing Yes
SFDS (Square Feed Drive System) Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Stippling Function Free Hand Quilting
Workspace (cm) 28.5

Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Embroidery foot “W”
Free motion open toe quilting foot “O”
Adapter
Screw (small)
Needle set: 75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)
Twin needle 2.0/11 needle
Ball point needle set 75/11 2 needles: Ball point needle for embroidery HAX130EBBR
Bobbin × 10 (One bobbin is in machine.)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Vertical spool pin
Spool cap (small)
Spool cap (medium) × 2 (One spool cap is on machine.)
Spool cap (large)
Spool cap (special)
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Touch pen (stylus)
Knee lifter
USB cable
Alternate bobbin case (no color on the screw)
Bobbin case (gray, for bobbin work)
Cord guide bobbin cover (with single hole)
Bobbin cover (with mark)
Bobbin cover (on machine)
Foot controller
Embroidery frame set (extra large) H 30 cm × W 20 cm (H 12 inches × W 8 inches)
Embroidery frame set (medium) H 10 cm × W 10 cm (H 4 inches × W 4 inches)
Embroidery bobbin thread
Stabilizer material
Grid sheet set
Chalk pencil
Dust cover
Accessory Bag
Operation Manual
Quick Reference Guide

3 Year Guarantee

Machine Dimension (mm) 571x284x332
Weight (kg) 15.4
