360 x 200mm embroidery area with two included frames
774 built-in embroidery designs, 140 frames and 23 fonts

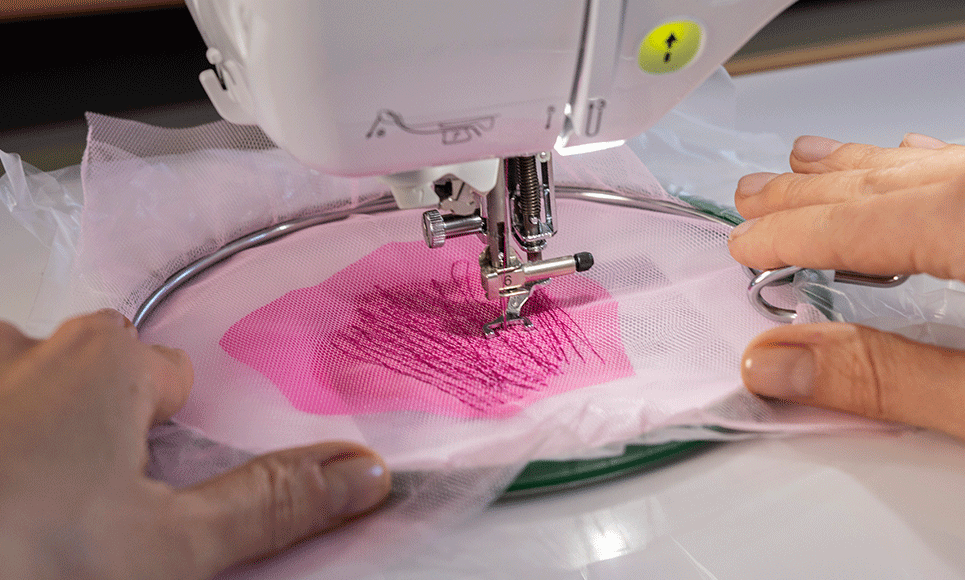

3D appliqué, crochet couching, lace crochet and French knot embroidery
Appliqué function to create quick patches
Matrix copy function
Colour sorting
LED drop pointer, two-point positioning
Large 254mm (10”) workspace to the right of the needle
Curve Sewing function – Brand new Brother innovation!
754 built-in stitches, including 14 one-step buttonholes
Stitch tapering function with 20 tapering styles
My Custom StitchTM decorative stitch designer
Multi-directional sewing for even wider decorative stitches
Digital dual feed foot – included as standard
External laser guideline
ICAPS automatic fabric sensor for even, strong feed
Pivot function
Easy free motion conversion with auto drop feed
Knee lift
ISR (Intelligent Stitch Regulator) compatible
Wireless connectivity
Newly designed foldable hard case

Workspace
Large 254mm (10”) workspace to the right of the needle.

Built-in sewing stitches
754 built-in stitches, including 14 one-step buttonholes and 20 tapering stitches.

One-step buttonhole styles
One-step ‘auto size’ buttonhole function creates perfectly uniform buttonholes.

Lettering stitches
5 lettering styles (lower and uppercase).

My Custom StitchTM
Design your own stitch patterns or edit and change the built-in template designs and save for future use.

Stitch tapering function
Taper stitch patterns into corners and points for a professional finish.

Combining patterns
Create your own stitch combinations and save them to memory for future use.

Mirror imaging
Create a mirror image of your stitch pattern to achieve an even greater variety of stitches.

Repeated or single sewing
Choose to sew a stitch pattern once or repeatedly.

Vertical pattern adjustment
Adjust the length of decorative stitch patterns.

Side feed
Side feed for multi-directional sewing in eight directions with straight and zigzag stitches. Sews extra-large decorative stitches up to 40mm wide.

Curve Sewing function
Easily sew curves, arcs and circles with no jumps or jags. The feed dogs guide the fabric for you for smooth sewing.

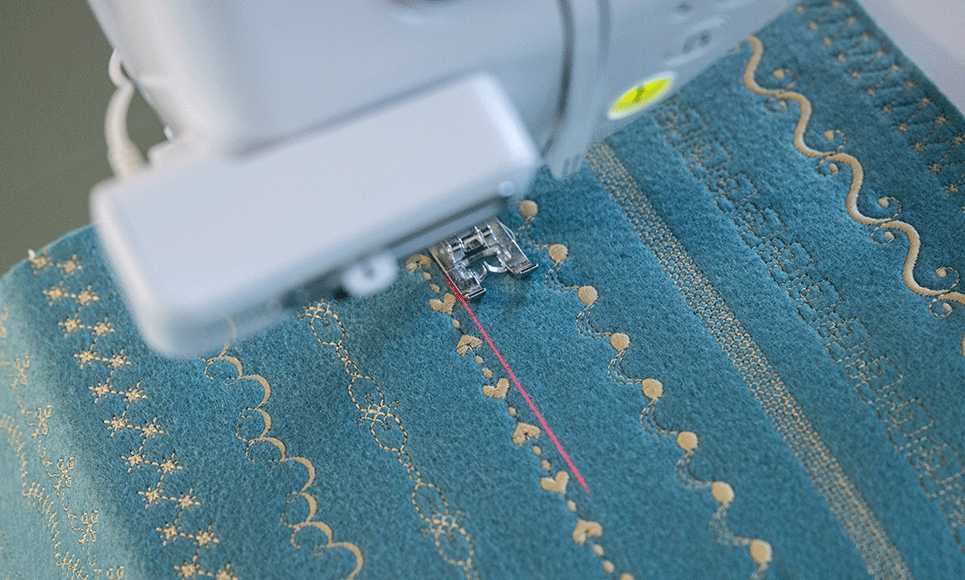

External laser sewing guideline
Sew straight with the included-as-standard external laser sewing guideline. Just clip onto your machine and let it guide you.

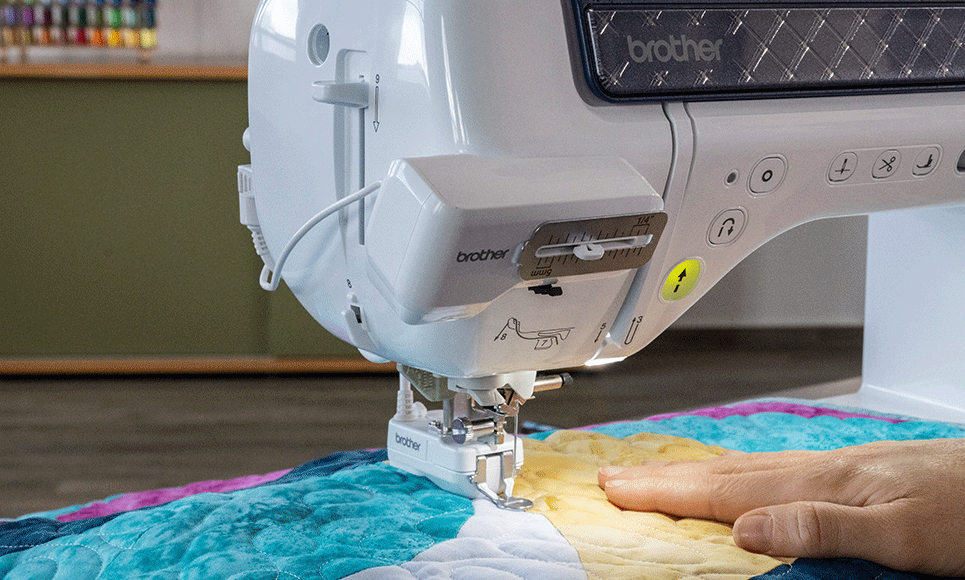

Dual feed
Digital Dual Feed System for even and consistent sewing on all fabrics.

SFDS (Square Feed Drive System)
Gives a smooth even feeding action for superior stitch quality on any weight of fabric.

ICAPS - Continuous Automatic Pressure System
The ICAPS fabric sensor system continuously detects fabric thickness while sewing and automatically adjusts pressure to ensure even stitch quality over different fabric thicknesses.

Easy to remove needle plate
Swap needle plates easily with the curved or L-shape screw driver

Pivot and foot height
Lightening quick pivoting function with customisable foot height.

Free motion
Presser foot height can be adjusted according to the thickness of the fabric.

Drop feed
Easily drop the feed dogs and convert to free motion sewing with the touch of a button.

Ruler
Ruler design with zero mark at the needle.

Knee lift
Free up your hands using the knee lift to raise/lower the presser foot. Ideal for large projects such as quilts.

Slide speed control
Slide speed control adjusts speed from slow to fast. This can also be set to alter stitch width whilst sewing.

Lockstitch button
At the touch of a button, tie-off stitches can be easily sewn at the beginning and end of the stitch. When pressing the button while sewing a decorative stitch, the machine will stop automatically after completing the motif.

Customised settings
Allows you to adjust the stitch width and length to your personal preference and save these to memory for future use. Adjust and refine thread tension to suit whichever project you’re working on.

Zigzag foot "J" (on machine)
Monogramming foot "N"
Overcasting foot "G"
Zipper foot "I"
Buttonhole foot "A"
Blind stitch foot "R"
Button fitting foot "M"
Free motion open toe quilting foot "O"
1/4" Piecing foot with guide
Straight stitch foot
Compact dual feed foot
Embroidery foot "UH+" with LED pointer
Embroidery couching foot "Y"
Yarn guide
Yarn threader
Adapter
Screw (small)
Needle set
Ball point needle set
Twin needle
Bobbin × 10 (One bobbin is on machine.)
Bobbin clip × 10
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (large)
Screwdriver (small)
L-shaped screwdriver
Disc-shaped screwdriver
Spool cap (large)
Spool cap (medium) x 2 (One spool cap is on machine.)
Spool cap (small)
Thread spool insert (mini king thread spool)
Spool net
Embroidery needle plate cover
Knee lifter
Standard bobbin case (green marking on the screw) (on machine)
Alternate bobbin case (no color on the screw)
Straight stitch needle plate
Bobbin cover (with mark)
Bobbin cover (with mark left mm)
Cord guide bobbin cover
Bobbin cover (on machine)
Embroidery frame set 360 mm (H) × 200 mm (W)
Embroidery frame set 180 mm (H) × 130 mm (W)
Embroidery bobbin thread (#60, white)
Stabilizer material
Touch pen (stylus)
Grid sheet set
Power cord
Accessory bag
Horizontal spool pin
Extra spool pin and instruction sticker
Upper section of spool support
Lower section of spool support
Telescopic thread guide
Spool pin × 2
Spool cap (XL) × 2
Spool cap base × 2
Screw and washer
Spool felt × 2
Spool holder × 2
Ring × 4
Foot controller
External guideline marker
Guideline scale
Cord guide
Shell type machine cover
Basic Operation Manual

Brother 3 year Warranty *Commercial use only 1 year warranty

Machine Dimension (mm) 815 x 309 x 524 mm

Embroidery area
Generous 360 x 200mm/14 x 8" embroidery area.

Built-in designs
914 built-in embroidery designs, including 140 frames and 23 fonts.

Embroidery speed
Embroidery up to 850 stitches per minute.

LED pointer
Laser pointer for precise pattern placement.

Two-point positioning
Use the LED pointer to precisely align embroidery patterns along cuffs, edges, pockets and more.

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 1, 10 and 90 degrees), drag and drop operation, zoom up to 300%.

Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment.

Font sizes
S/M/L size for font designs.

Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters.

Matrix copy function
Quickly make repeated designs. With automatic colour sorting for fast stitch outs and fewer thread changes.

Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop with automatic best placement repetition.

Automatic colour sorting
Machine automatically sorts colours for optimised stitching order and to minimise thread changes.

Thread trimming
Programmable jump stitch cutting.

Basting
Embroidery basting.

Colour change
Direct touch button for changing colours of embroidery patterns.

Resume function
Resume your embroidery at the exact spot where you stopped in case of a power failure or accidental interruption.

Frame detection
Automatic embroidery frame size detection.

Included frames
Two (2) included embroidery frames: 360 x 200mm (14 x 8") and 180 x 130mm (7 x 5”).
