Extra-large embroidery area: 360 x 240mm (14 x 9.5”)
889 built-in embroidery designs, including 101 Disney patterns
26 embroidery fonts (24 alphabets and 2 Cyrillic)
Monogram alphabet patterns, including candle wicking design
17 embroidered buttonholes
Advanced colour shuffling – save up to nine of your favourite palettes
Up to 1050spm embroidery speed
10.1” high resolution HD LCD screen
Wireless capability to work with Brother apps, Artspira, and PE-Design 11
Stitch to Block function – change size of embroidery keeping the stitch density
LED pointer embroidery foot
Matrix setting – automatically place repeated designs for the perfect layout
Auto jump stitch trimmer
USB port – making it easy to import designs
Built-in movie tutorials and MP4 upload function
5-year warranty

Embroidery foot “W+” with LED pointer (on machine)
Needle set
- 75/11 6 needles: Ball point needle for embroidery
Bobbin × 10 (one bobbin is in machine)
Seam ripper
Scissors
Cleaning brush
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Spool cap (small)
Spool cap (medium) × 2 (one spool cap is on machine)
Spool cap (large)
Thread spool insert (mini king thread spool)
Vertical spool pin
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Touch pen (stylus)
Bobbin case (no color on the screw)
Bobbin cover (on machine)
Embroidery frame with decal set
- 36 cm (H) × 24 cm (W) (approx. 14 inches (H) × 9 1/2 inches (W))
Embroidery frame with decal set
- 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W))
Embroidery positioning sticker sheets × 4
Lens calibration sheet
Embroidery bobbin thread (#90, white)
Stabilizer material
Accessory bag
Embroidery couching foot “Y”
Yarn guide for embroidery couching
Yarn threader
Operation Manual
Embroidery Design Guide

Brother 5 year Warranty *Commercial use only 1 year warranty

Machine Dimension (mm) 662x321x348
Weight (kg) 15.3

Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings including off.

Needle threader
Easy to use, automatic needle threading system.

Bobbin winder
Independent bobbin winder system with adjustable winding speed.

Wireless

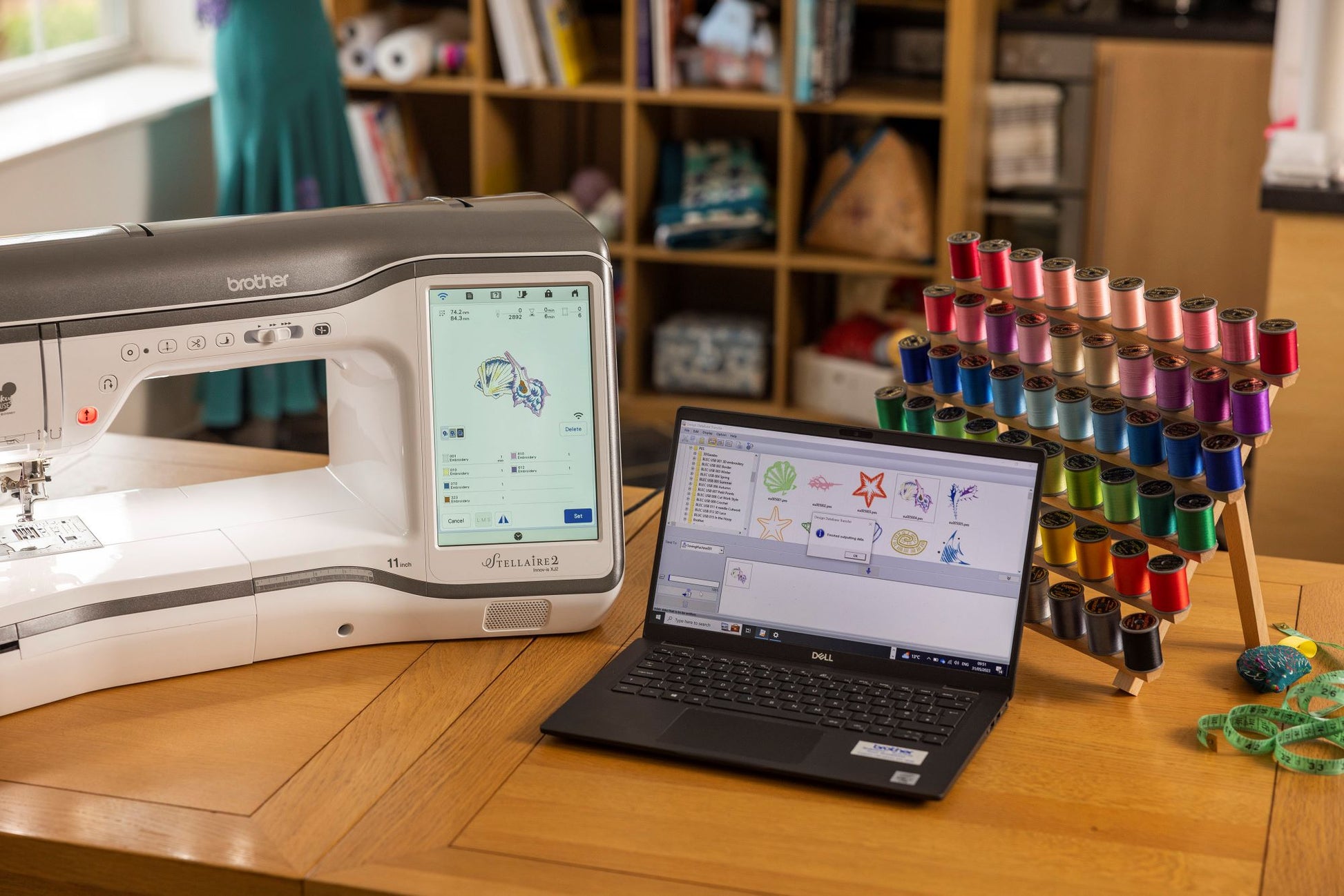

Wireless LAN capability for exchange of embroidery data with PE-Design 11, mobile apps and updates.

Thread tension
Automatic thread tension.

Thread cutter
Trims upper and lower threads automatically.

Presser foot
Automatic presser foot lift and extra high lift.

Thread sensors
Gives you a warning when your upper and lower threads are running low.

Teaching movies
Wide selection of built-in tutorial videos and MP4 playability.

Start/stop button
Ergonomic large start/stop button.

Environment
Save energy with the Eco and Deep Sleep modes.

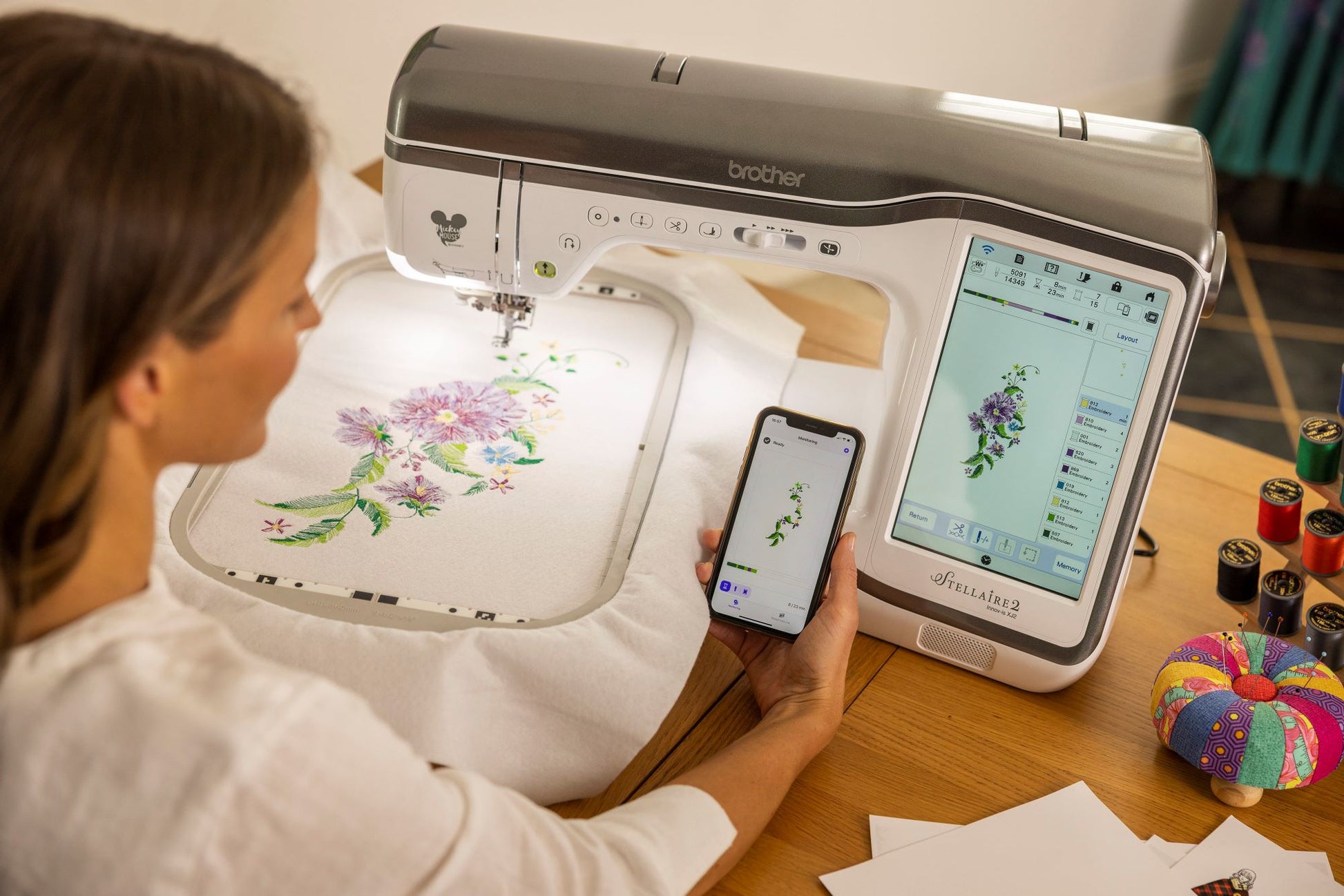

App connectivity

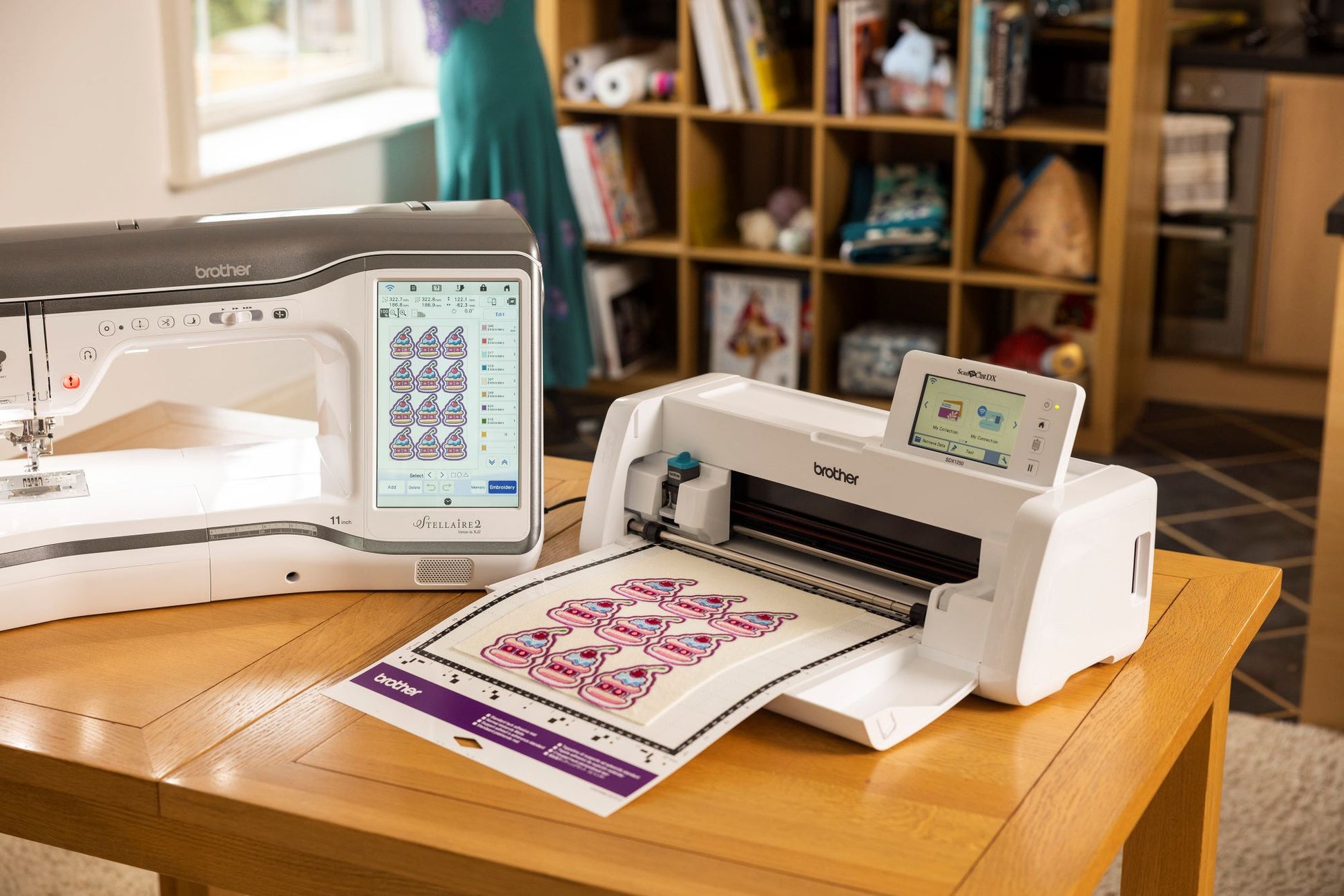

Create your own designs with My Design Center and Artspira, create your own stitches with My Custom Stitch, get perfect placement with My Design Snap, keep an eye on your work whatever you’re doing with My Stitch Monitor and connect to your ScanNCut DX with My Connection.

LCD Display
Large and clear 10.1” (800 x 1280px) built-in HD LCD display.

Intuitive user interface
Easy-to-use screen layout and realistic preview of selected stitches and patterns.

USB connectivity
Two high-speed ports, can connect by mouse as well as optional external USB embroidery card reader.

Multilingual operational languages
12 built-in languages.

Safety features
Easily disengage needle to make changing presser feet and needles safer, and lock the screen to avoid any accidental stitch changes.

Updates
Automatic software update capability.

Embroidery Features
Embroidery area
Large 14 x 9.5” / 360 x 240mm embroidery area.

Embroidery speed
Embroidery up to 1,050 stitches per minute.

Built-in designs
Total 889 embroidery patterns including 101 Disney, monogram, and buttonhole shapes.

Built-in fonts
Built-in 26 embroidery fonts (24 alphabet and 2 Cyrillic). Two fonts include the full Eastern European font set.

Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment.

Font sizes
S/M/L size for font designs.

Built-in frame designs
140 frame pattern combinations.

Thread trimming
Jump stitch thread trimming with thread wiper.

Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters.

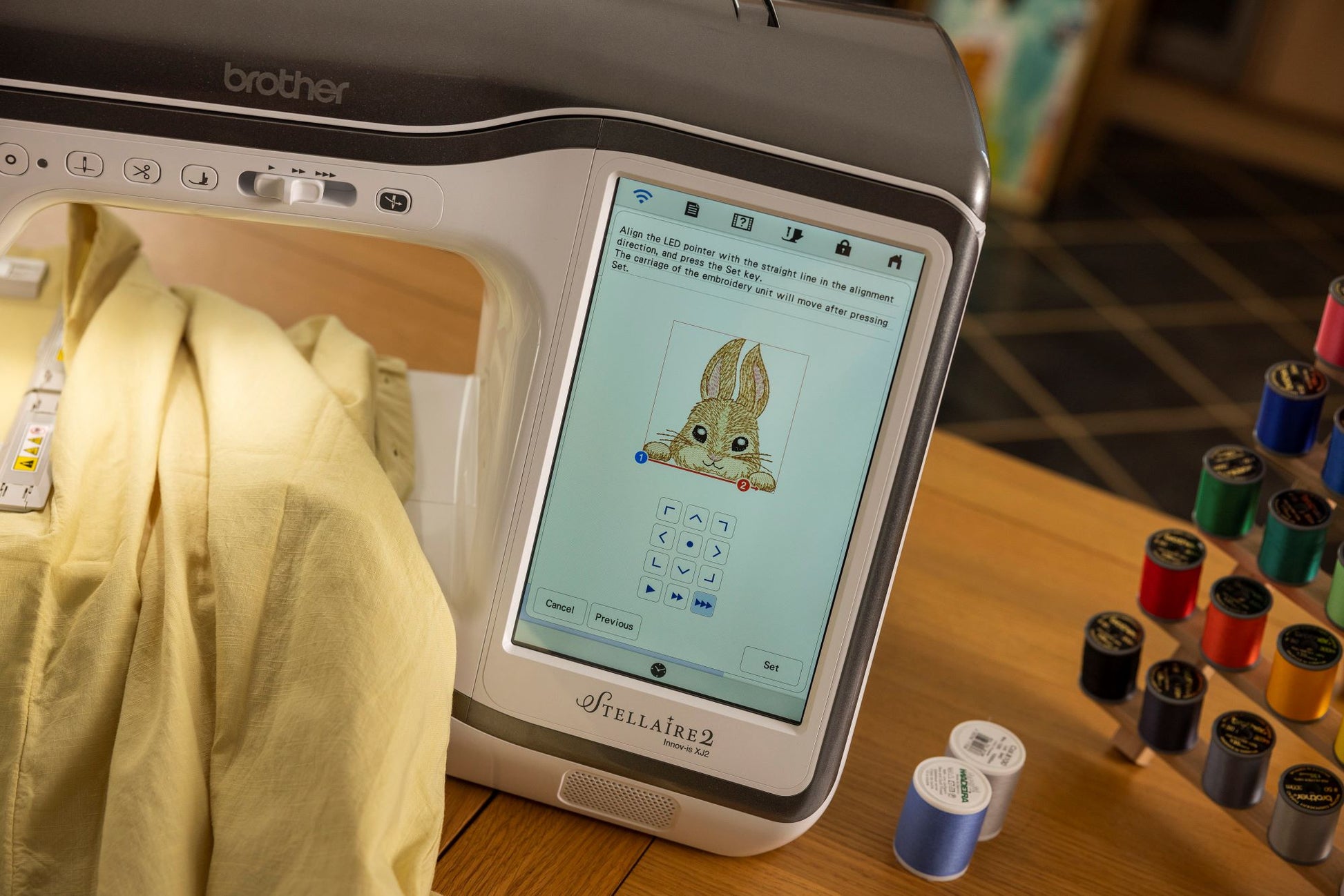

LED pointer
Laser pointer for precise pattern placement.

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 10 and 90 degrees), drag and drop operation, zoom up to 800% in My Design Centre and 200% otherwise.

Basting
Embroidery basting.

Colour Shuffling
Colour shuffling function that can choose from your favourite thread brands with more colour variations, with pinning, and favourite mark capability.

Stippling
No-fuss stippling in embroidery edit.

Selecting designs
Advanced multiple design selection.

Colour change
Direct touch button for changing colours of embroidery patterns.

Resume function
Resume your embroidery at the exact spot where you stopped in case of a power failure or accidental interruption.

Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop with automatic best-placement repetition.

Optimised colour sorting
Quickly sort colours in different designs for optimised sewing order and to minimise thread changes.

Frame detection
Automatic embroidery frame size detection.

Progress bar
View the progress of an embroidery pattern or individual colour, and use to move forwards/backwards through the design.

Thread palettes
Select various thread brands for built-in and external designs and save up to nine of your favourite combinations.

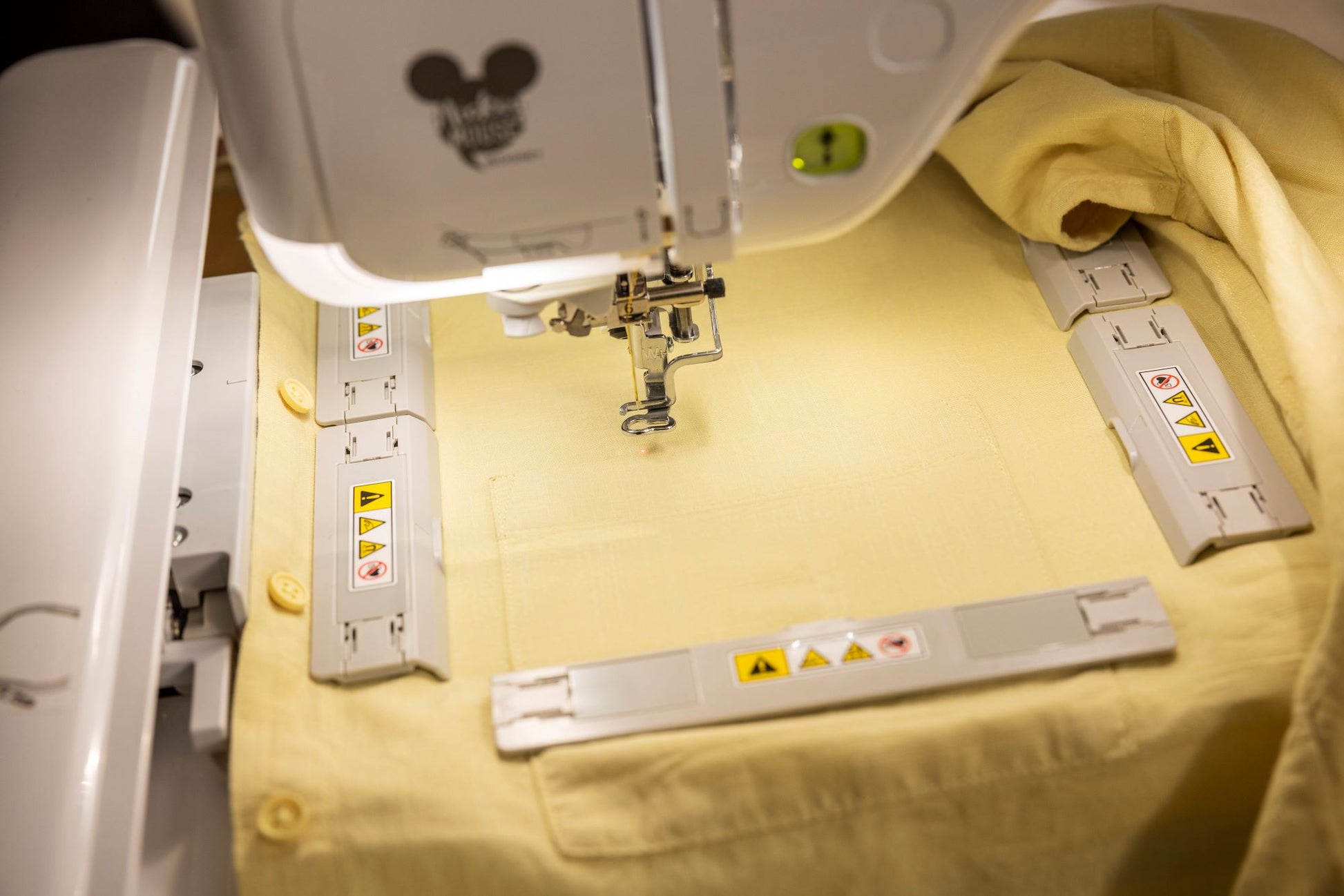

Included frames
Two standard frames, compatible with My Design Snap, included – 360 x 240mm (14 x 9.5”) and 180 x 130mm (7 x 5”).
